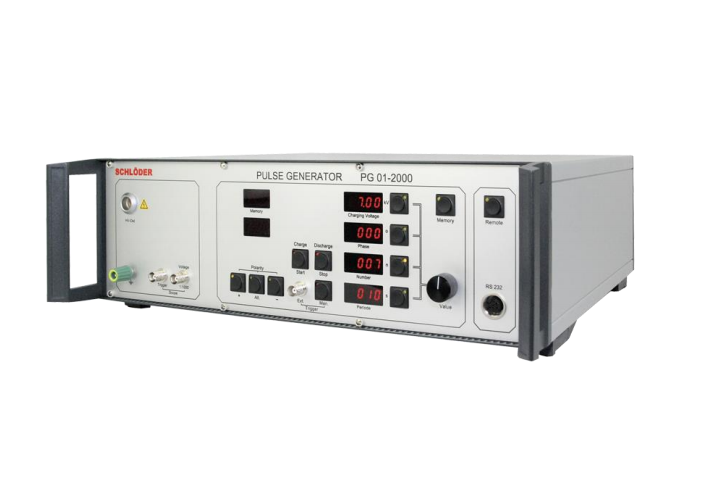

Schloeder PG 01-2000 Pulse Generator (10kV; 0.1/2000µs)

Pulse voltage: 4.0 - 10.0 kV

Pulse shape: rise time 0.1 µs pulse width 2000 µs idle speed (> 20 MOhm)

Waveform under load: 50 Ohm open circuit voltage = 50 % U pulse width 2.773 µs

Polarity: positive, negative, alternating

Energy of the source: 1 Joule - at 7 kV charging voltage

Impedance of the source: 50 Ohm

Interface: RS 232

Loading time: < 5 seconds

HV output: earth-related

Number of pulses: 1 - 999

Repetition rate: 5 - 999 sec

Phase angle: φ = 0° - 359°, 1° steps, mains synchronous triggering

BNC socket for: voltage measurement; 1 V = 1 kV test voltage

BNC socket for: trigger pulse oscilloscope (TTL level)

Test sample connection: HV cable

Operating temperature: 0 - 40 °C

Dimensions: 19 Housing (3 RU)

Weight: 10 kg

Electronics input: 230 V / 50 Hz / 2.5 A

Datasheet
