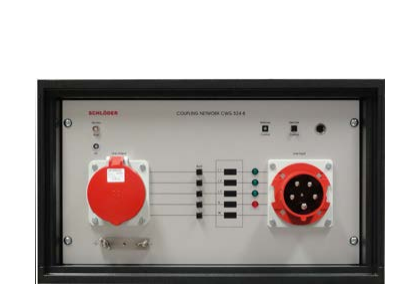

Schloeder CWG 524 - B - 550 Coupling network Burst (550 V)

Nominal voltage: 320 / 550 V +0%, 50-60

Nominal current IN: 4 x 60 A at Tamb = 30°C

Serial choke 5 x 100 – 150 µH

Coupling capacity: C Burst: 33 nF

Surge: phase - PE 9 µF / 10 Ω

phase - phase: 18 µF / 2 Ω

HV input connection Burst: Fischer HV-jack D103A023

Surge: Fischer HV-jack D105A039

Input coupling network: CECON 63 A

Output coupling network:CECON 63 A

Input electronic supply: IEC-plug, 230 V / 1A, on the rear side

Operation temperature: 0 up to 30° C

Housing (L x B x T): 6 HE (19’’ housing)

Weight: app. 30 kg
