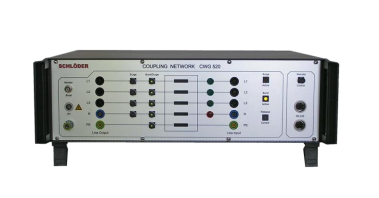

Schloeder CWG 520 3-Phase coupling network (230/400 VAC, 270 VDC, 4x16A)

Nominal voltage AC: 230 V / 400 V / 50 - 60 Hz

Nominal voltage DC: 270 V + 0% (L -> N, PE)

Nominal max. current: 4 x 16 A at 40° C room temperature

Series inductance (BURST): 5 x 120 µH / 16 A

Single choke (SURGE): 4 x 1,5 mH / 16 A

Lamps for phase indication: L1, L2 , L3: green, N: red

Coupling impedances/Burst Coupling: 33 nF

Coupling impedances/Surge coupling: L – PE, N – PE: 9 µF + 10 , L – L, L – N: 18 µF

Coupling Modes: Burst L1, L2, L3, N, PE individually and in any combination against earth

Coupling Modes: Surge L – L, L – N, L – PE, N – PE

Logic signal input: BNC - jack

High voltage input Burst: Fischer high voltage jack D103A023

High voltage input Surge: Fischer high voltage jackD105A039

Connection for test sample supply: laboratory-banana-jacks

Connection for test specimen: laboratory-banana-jacks

Electronics power supply: 100-240 V / 47-63 Hz / 80 VA (power entry module with line filter

on rear side)

Additional ground sockets: on front and rear side

Operating temperature: 0 - 40 °C

Housing: 19" housing, 3 HE

Weight: approx. 20 kg
