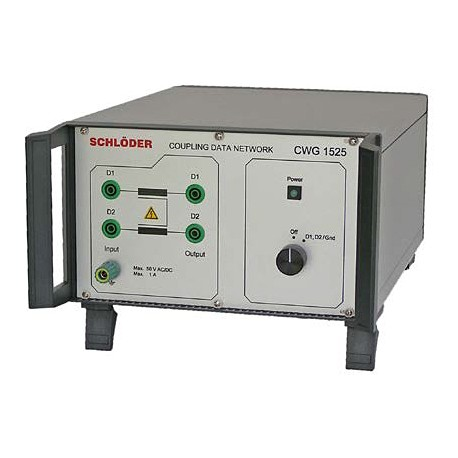

Schloeder CWG 1525 Coupling network Surge (50 V AC/DC, 1A)

Nominal voltage AC: max. 50 V AC/DC

Nominal current IN: 2 x 1 A at room temperature max 40°C

Decoupling: 2 x 20 mH, current compensated chokes

Coupling resistor: 2 x 80 ohm

Coupling Device: (CD) Gas arrestors

Coupling Lines: (D1 + D2) to ground

Maximum pulse voltage: 1,2/50 µs 4.4 kV

High voltage (HV) input: Fischer HV-jack D105A039

Input coupling network: Laboratory jacks

Output coupling network: Laboratory jacks

Input electronic supply: IEC-plug, 230 V / 0,5 A on the rear

Ground connector additional via jack: on the front and rear

Room temperature: 0 - 40° C

Housing (H x W x D): 150 x 225 x 360 mm (3HE; 42TE)

Weight: approx. 5 kg
