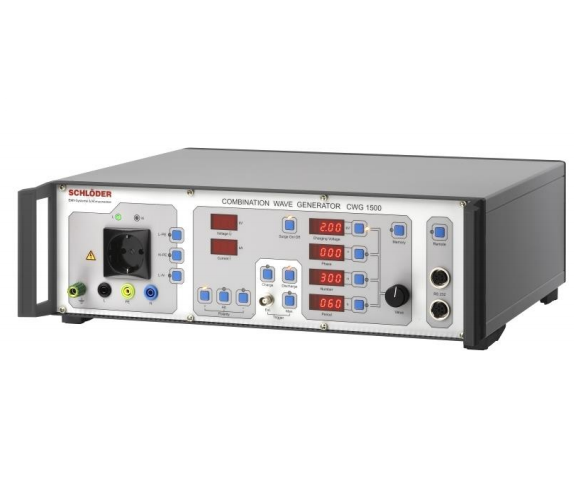

Schloeder CWG 1500 Surge/Hybrid Generator (4.4 kV; 100 Ws)

Surge / Hybrid Generator

Charging voltage: 0.2 - 4.4 kV

Loading time: ≤ 10 sec

Number of pulses: 1 - 999

Repetition rate: 10 - 990 sec

Phase angle: φ = 0° - 359°, 1° steps, net synchr. triggering 50 + 60 Hz

Polarity: positive, negative, alternating

Trigger: manual or external

Interface: RS 232

HV: Output unearthed or earth-related

Memory function: call up test level 1 - 4, max. 32 memories can be selected

Discharge parameters: display effective discharge voltage and current

Stored energy: 100 Ws max.

Operating temperature: 0 - 40 °C

Dimensions: 19" housing, 3 RU

Weight: appr. 18 kg

Supply voltage: 100-240 V / 47-63 Hz / 100 VA

Single phase integrated coupling network

Nominal voltage AC: max. 230 V / 16 A 50 / 60 Hz

Nominal voltage DC: max. 270 V / 16 A

Phase display: LED red; LED green

Symmetrical coupling: L - N: 18 µF

Asymmetrical coupling: L-PE, N - PE: 9 µF + 10 Ω

Test sample connection: Schuko socket; additional laboratory sockets

Earth connection: on the front panel and on the rear

Options

CWG 520 3-ph. coupling network 4 x 16 A

CWG 523 3-ph. coupling network 4 x 32 A

CWG 524 3-ph. coupling network 4 x 60 A

CWG 52x - 550 HV models up to 550 VAC L-L

CWG 1525 CDN for 2 unshielded, balanced connecting cables, 1 A

CWG 1526-4 CDN for 2 unshielded, unbalanced connection lines, 4 A

CWG 1526-10 CDN for 2 unshielded, unbalanced connection lines, 10 A

CWG 1528 CDN for 4 unshielded, unbalanced connection lines, 6 A

CWG 550 18 µF capacitor in housing

CWG 551 9 µF capacitor + 10 Ω Resistance in housing

CWG 553 0.5 µF capacitor + 40 Ω Resistance in housing

EMV-SOFT control software for surge, burst and mains interruption generators
