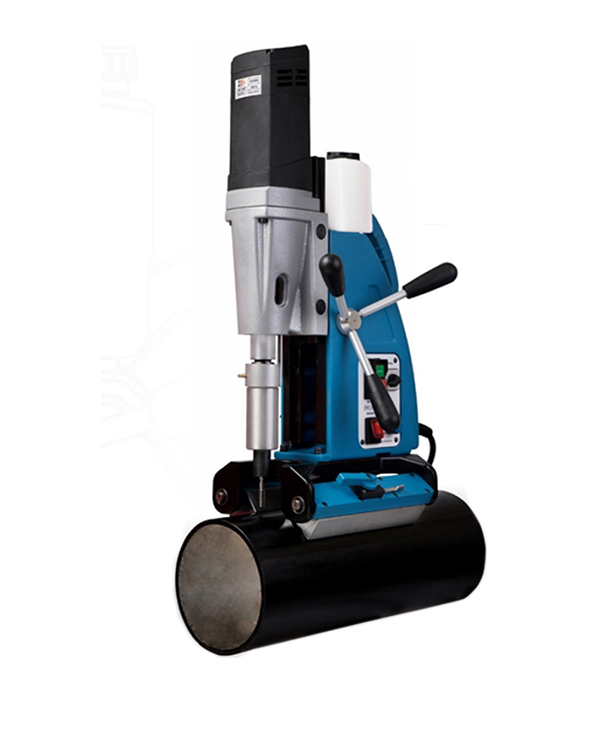

Schifler-Germany SWC 50 PDT Magnetic Drilling Machine (1500W, Ø 12 mm – Ø 50 mm)

Motor power: 1500 watt

Spindle: MT3, 19 mm Weldon

Broach cutter (35 mm length): Ø 12 mm – Ø 50 mm

Broach cutter (50 mm length): Ø 12 mm – Ø 50 mm

Broach cutter (80 mm length): Ø 18 mm – Ø 26 mm

Tapping: M6-M20

Twist drill: Ø23 mm

RPM: 250 min-1/450 min-1

Stroke: Flexible Stroke upto 205 mm

Smallest Pipe Diameter: 80 mm (3.3/16”)

Weight: 16 kg (59.5 lbs)

Magnet power: 15000 N.

Input supply voltage: 220V-240 V

Frequency: 50-60 Hz

Manual

Video

https://www.youtube.com/watch?v=UXHwqsQWATY
