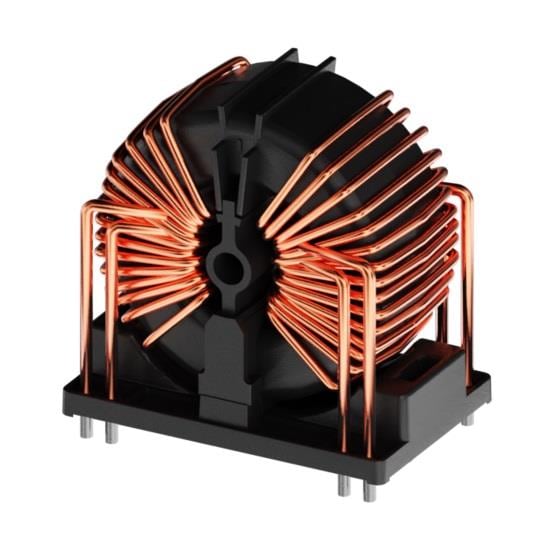

Schaffner RT8522-40-1M2 Current Compensated Choke Vertical 40 A PCB two line Common Mode Choke 1,2 mH Inductance
ManufacturerSchaffner(View more products from this manufacturer)
ModelRT8522-40-1M2
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 38 mm
Height: 60 mm
Length: 60 mm
Shielding: Unshielded
Tolerance: 1 %
Inductance: 1.2 mH
Application: EV Charging
Filter Type: AC, DC
Unit Weight: 220 g
Core Material: Copper
Lead Diameter: 2.8 mm
Mounting Style: PCB Mount
Test Frequency: 100 kHz
Termination Style: Through Hole
Maximum DC Current: 40 A
Number of Channels: 1 Channel
Maximum DC Resistance: 2.2 mOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
