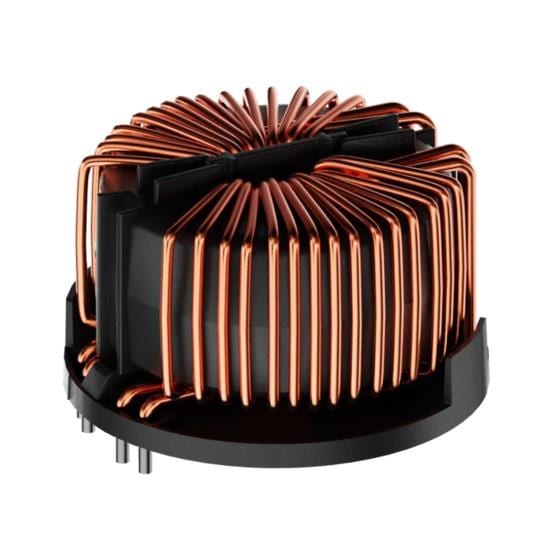

Schaffner RT8122-63-0M5 Current Compensated Choke Horizontal 63 A PCB two line Common Mode Choke with 0,5 mH Inductance
ManufacturerSchaffner(View more products from this manufacturer)
ModelRT8122-63-0M5
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Height: 41 mm
Diameter: 59.8 mm
Shielding: Unshielded
Tolerance: 1 %
Inductance: 500 uH
Application: EV Charging
Filter Type: AC, DC
Unit Weight: 260 g
Core Material: Copper
Lead Diameter: 2.2 mm
Mounting Style: PCB Mount
Test Frequency: 100 kHz
Termination Style: Through Hole
Maximum DC Current: 63 A
Number of Channels: 1 Channel
Maximum DC Resistance: 1.1 mOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
