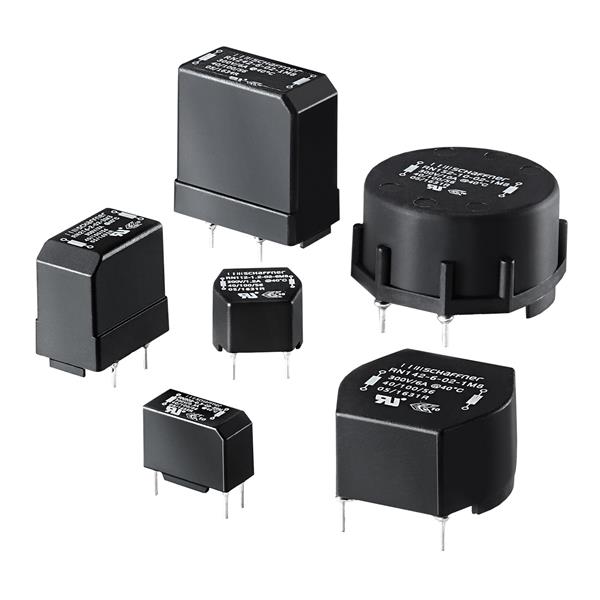

Schaffner RN218-2.2-02-3M3 Current Compensated Choke 2.2A 3.3mH 100mOhm Vertical TH Choke
ManufacturerSchaffner(View more products from this manufacturer)
ModelRN218-2.2-02-3M3
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 15.2 mm
Height: 19.8 mm
Length: 17.9 mm
Shielding: Unshielded
Tolerance: - 30 %, + 50 %
Inductance: 3.3 mH
Unit Weight: 8 g
Core Material: Ferrite
Lead Diameter: 0.8 mm
Mounting Style: PCB Mount
Test Frequency: 10 kHz
Termination Style: Through Hole
Maximum DC Current: 2.2 A
Number of Channels: 1 Channel
Maximum DC Resistance: 100 mOhms
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
