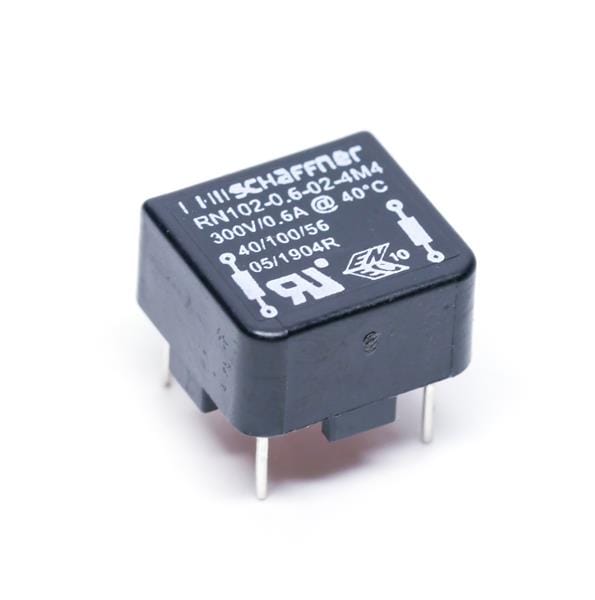

Schaffner RN102-0.6-02-4M4 Current Compensated Choke 0.6A 4.4mH 380mOhm Horizontal Choke
ManufacturerSchaffner(View more products from this manufacturer)
ModelRN102-0.6-02-4M4
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 14 mm
Height: 9 mm
Length: 14 mm
Shielding: Unshielded
Tolerance: - 30 %, + 50 %
Inductance: 4.4 mH
Unit Weight: 4 g
Core Material: Ferrite
Lead Diameter: 0.6 mm
Mounting Style: PCB Mount
Test Frequency: 10 kHz
Termination Style: Through Hole
Maximum DC Current: 600 mA
Number of Channels: 1 Channel
Maximum DC Resistance: 380 mOhms
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
