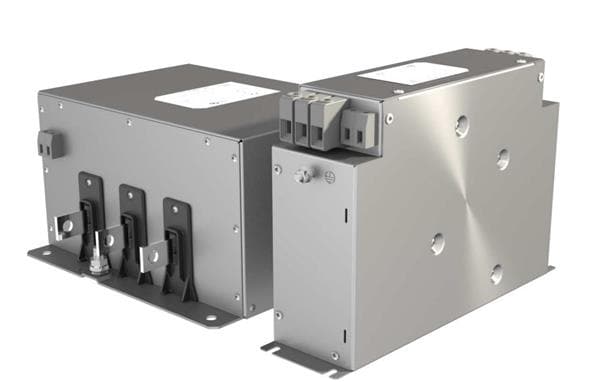

Schaffner FN3840-50-53-C35-R65 Power Line Filters 3 Phase Filter for regenerative Applications 530VAC, 50A, 4500nF, 1.5_1MOhm
ManufacturerSchaffner(View more products from this manufacturer)
ModelFN3840-50-53-C35-R65
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 85 mm
Height: 182 mm
Length: 237 mm
Approvals: CE, ENEC14, UL
Capacitance: 4.5 uF
Filter Type: EMC/EMI Filter
Unit Weight: 3.5 kg
Current Rating: 50 A
Mounting Style: Panel Mount
Voltage Rating: 530 VAC
Leakage Current: 4.33 mA
Termination Style: Terminal Block
Operating Frequency: 0 Hz to 60 Hz
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
