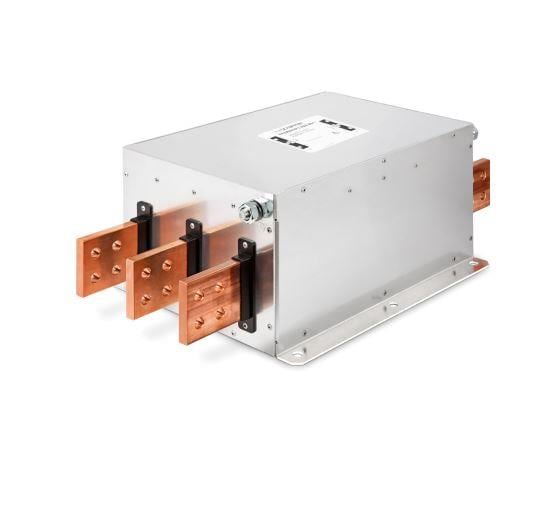

Schaffner FN3359HVB-2500-99 Power Line Filters High current EMC/RFI Filter 2500A 2000kW no capacitors to ground
ManufacturerSchaffner(View more products from this manufacturer)
ModelFN3359HVB-2500-99
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 310 mm
Height: 220 mm
Length: 450 mm
Approvals: CE, ENEC14, UKCA UL
Filter Type: EMC/EMI Filter
Unit Weight: 69 kg
Current Rating: 2.5 kA
Mounting Style: Panel Mount
Voltage Rating: 690 VAC
Leakage Current: 0 A
Termination Style: Busbar
Operating Frequency: 0 Hz to 60 Hz
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 25 C
