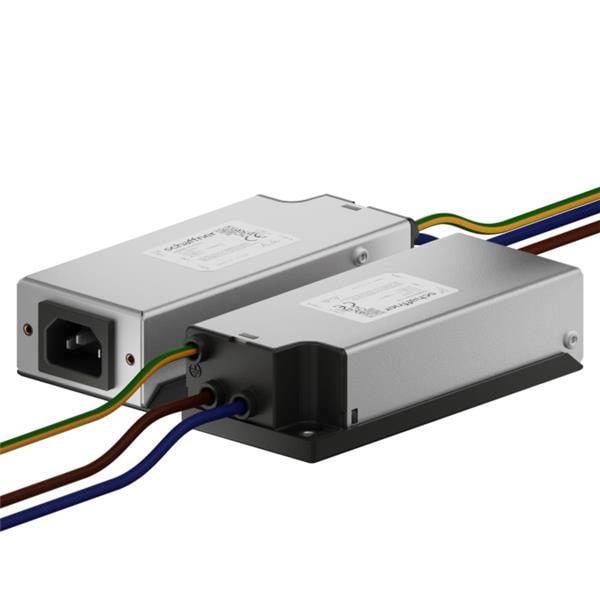

Schaffner FN2640-10-07-C11 Power Line Filters IEC Single phase filter 1HU 10 A, litz wire connections, 4.7nF
ManufacturerSchaffner(View more products from this manufacturer)
ModelFN2640-10-07-C11
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 59 mm
Height: 35 mm
Length: 133 mm
Approvals: CE, CQC, ENEC14, UR
Inductance: 8.3 mH
Capacitance: 4700 pF
Filter Type: 1-Stage EMI/EMC Filter
Unit Weight: 300 g
Current Rating: 10 A
Mounting Style: Rack Mount
Voltage Rating: 250 VAC
Leakage Current: 370 uA
Termination Style: Wire
Operating Frequency: 0 Hz to 60 Hz
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
