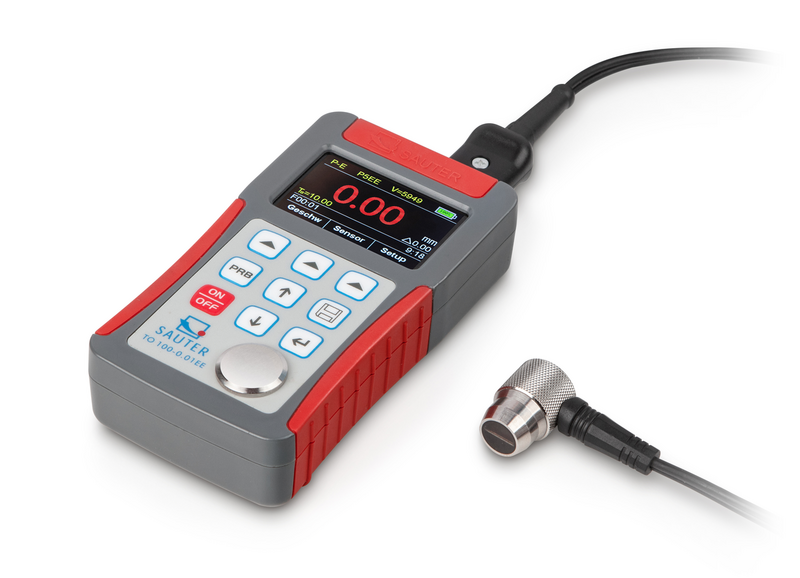

SAUTER TO 100-0.01EE Material thickness gauge (0,7 mm – 600 mm)

Units: mm, inch

Battery: 2×1.5 V AA

Interfaces: USB-Device

Cable length: 1 m

Speed of sound: 200 m/s – 19999 m/s

Material housing: plastic

Tolerance (% of [Max]): 0,4%

Measuring range echo-echo: 3 mm – 100 mm

Measuring range pulse-echo: 0,7 mm – 600 mm

Speed of sound [Max] (m/s): 19999 m/s

Speed of sound [Min] (m/s): 200 m/s

Measuring head measuring frequency: 5 MHz

Dimensions completely mounted (W×D×H): 31×69×130 mm

Material thickness echo-echo [Max] (mm): 100 mm

Material thickness echo-echo [Min] (mm): 3 mm

Readability material thickness [d] (mm): 0,01 mm

Material thickness pulse-echo [Max] (mm): 600 mm

Material thickness pulse-echo [Min] (mm): 0,7 mm
