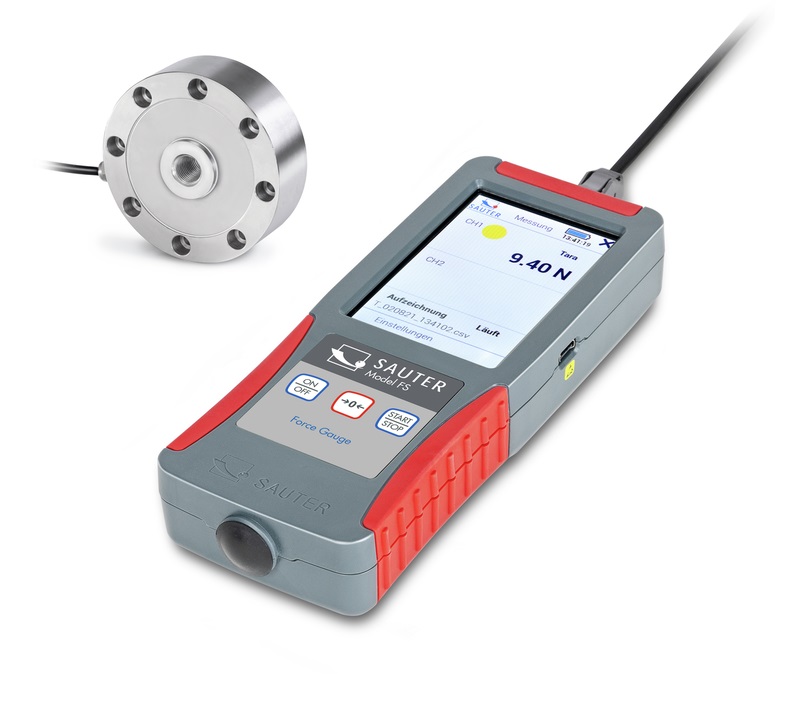

SAUTER FS 2-200KRY1 Force measuring device set (200 kN / 40N)

Measuring range force [Max] (N) : 200 kN

Readability force [d] (N) : 40 N

Measuring head measuring frequency: 1000 Hz

Number of platforms / channels: 2

Supplied power supply: Battery & Power supply

Rechargeable battery : 3,7V, 2400mAh

Memory function

Statistic function

Peak function

Material housing : plastic

Interfaces : USB-Device

Display type TFT, color with resolution : 320×480

Mounting - force application : Threaded hole M32 × 1,5

Mounting - force dissipation 8 × through hole Ø 8,5mm

Input voltage power supply /power [Max] : 100 V - 240 V, 50 / 60Hz

Input voltage device / power [Max] 5 V, 1 A

Plug-in power supply type USB including power supply

Supplied power supply Battery & Power supply

Rechargeable battery charging time : 8 h

Rechargeable battery operating time : backlight on 5 h

Rechargeable battery operating time : backlight off 8 h

Battery / accumulator type Li-Ion

Battery capacity : 2.400 mAh

Battery voltage : 3,7 V

Gross weight approx. : 3,0 kg

DATASHEET
