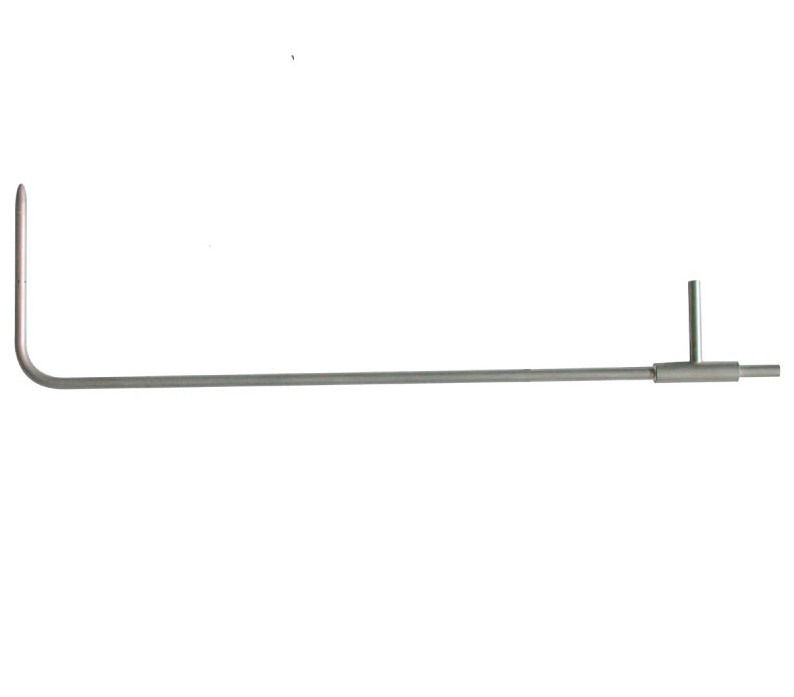

Sauermann TPL-12-2000 Pitot Tube L Type (Ø12 Mm / 2000Mm)

Diameter: Ø12 mm

Length: 2000 mm

Coefficient 1.0015 ±0.01

Material: Inox 316 L

Measuring range: 3 to 85 m/s

Operating temperature: From 0 to 600°C in standard and up to 1000°C in option

Static pressure: 2 bar maximum in static Hereafter on request

Global accuracy of the measurement system: Better than 1% for an alignment in relation to the flow axis of the fluid of ±10°C

Standards: AFNOR NFX10-112. Annex of the 77.09.14 This standard is in accordance with the international standard ISO 3966.

Datasheet
