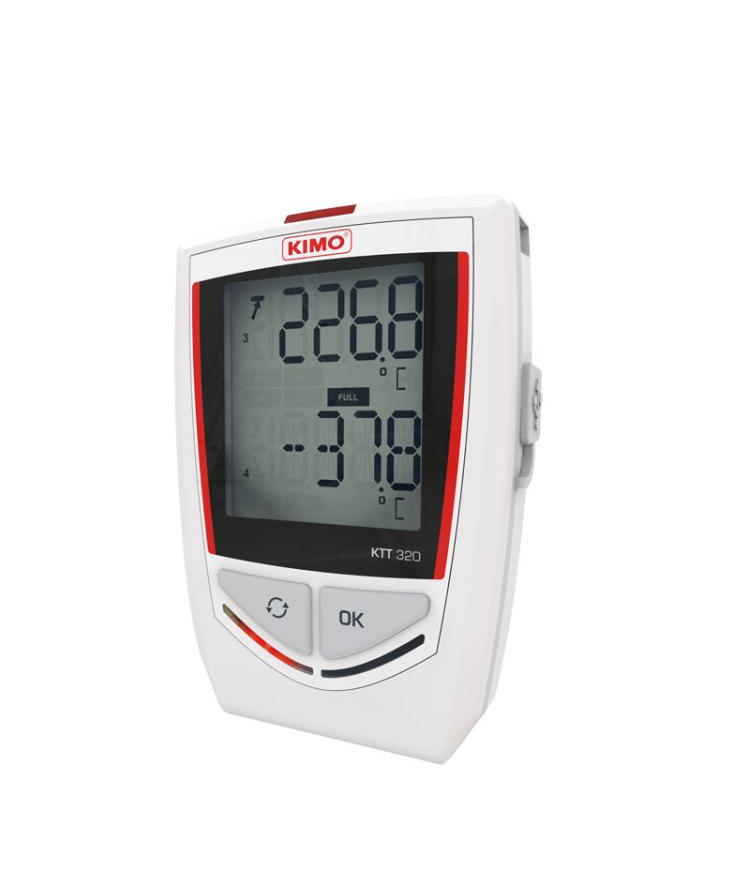

Sauermann KTT320 Temperature Data Logger

Units displayed: °C, °F

Resolution: 0.1 °C, 0.1 °F

External input: Micro-USB female connector

Input for probe: 4 inputs for thermocouple probes (K, J, T, N, S)

Type of sensor: Thermocouple

Measuring range:

K: from -200 to +1300 °C

J: from -100 to +750 °C

T: from -200 to +400 °C

N: from -200 to +1300 °C

S: from 0 to 1760 °C

Accuracies:

K, J, T, N: ±0.4 °C from 0 to 1300 °C

±(0.3% of the reading +0.4°C) below 0 °C

S: ±0.6 °C

Setpoints alarms: 2 setpoint alarms on each channel

Frequency of measurement: From 1 second to 24 hours

Operating temperature: From -20 to +70 °C

Storage temperature From: -20 to +50 °C

Display:

2 lines LCD screen

Dimensions of screen: 49.5 x 45 mm

2 indication LEDs (red and green)

PC communication: 1 micro-USB input

Control:

1 OK key

1 Selection key

Power supply: 2 x lithium AA 3.6 V batteries

Protection : IP54

Material: Compatible with food industry environment, ABS housing

Dimensions: 110.2 x 79 x 35.4 mm

Weight (with batteries): 200 g

Environmental conditions of use:

Air and neutral gases

Hygrometry: in non condensing condition

Maximum altitude: 2000 m
