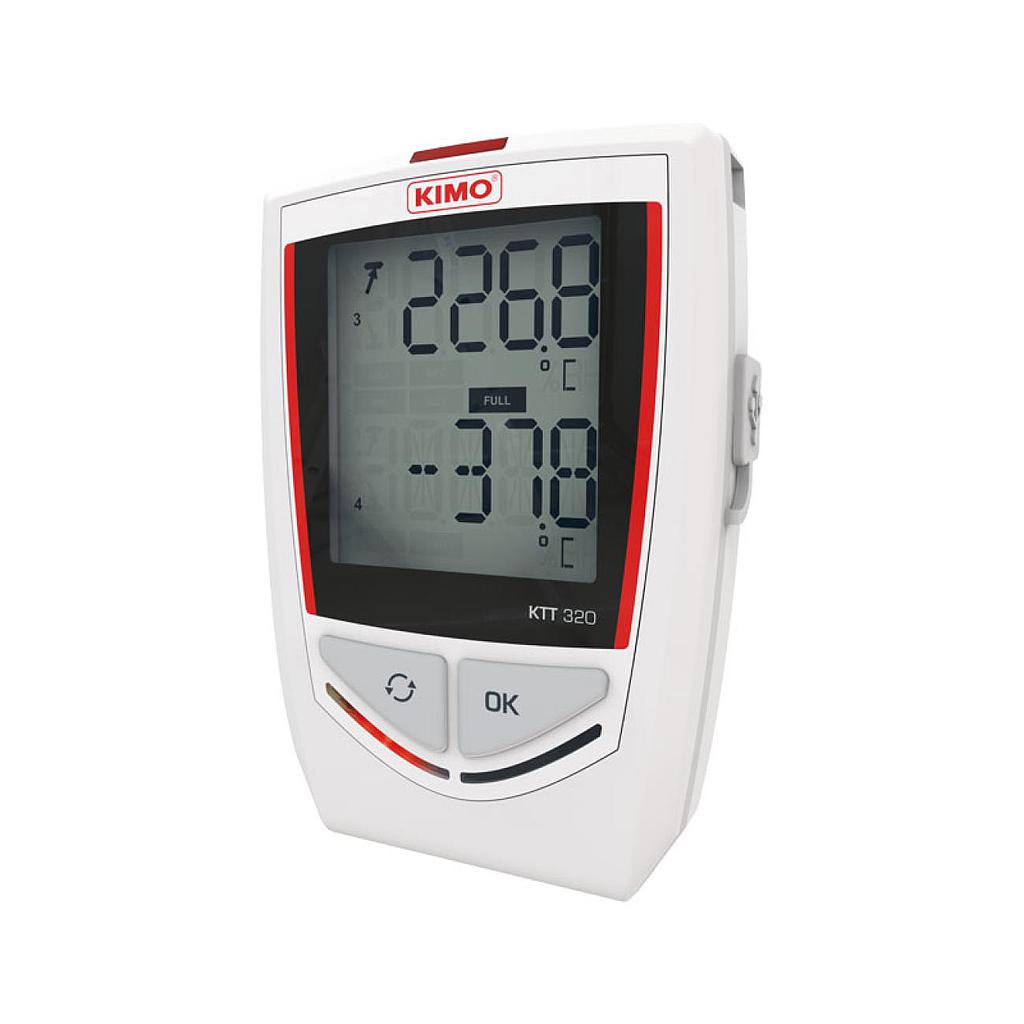

Sauermann KTT 320 Thermocouple Data Logger

Units displayed °C, °F

Resolution 0.1 °C, 0.1 °F

External input Micro-USB female connector

Input for probe 4 inputs for thermocouple probes (K, J, T, N, S)

Type of sensor Thermocouple

Measuring range K: from -200 to +1300 °C J: from -100 to +750 °C T: from -200 to +400 °C N: from -200 to +1300 °C S: from 0 to 1760 °C

Accuracies K, J, T, N: ±0.4 °C from 0 to 1300 °C ±(0.3% of the reading +0.4°C) below 0 °C S: ±0.6 °C

Setpoints alarms 2 setpoint alarms on each channel

Frequency of measurement From 1 second to 24 hours

Operating temperature From -20 to +70 °C

Storage temperature From -20 to +50 °C

Battery life 5 years

Display 2 lines LCD screen Dimensions of screen: 49.5 x 45 mm 2 indication LEDs (red and green)

PC communication 1 micro-USB input

Control 1 OK key 1 Selection key

Power supply 2 x lithium AA 3.6 V batteries

Protection IP54: KTT 320

Material Compatible with food industry environment ABS housing

Dimensions 110.2 x 79 x 35.4 mm

Weight (with batteries) KTT 320: 200 g

Environmental conditions of use Air and neutral gases Hygrometry: in non condensing condition Maximum altitude: 2000 m
