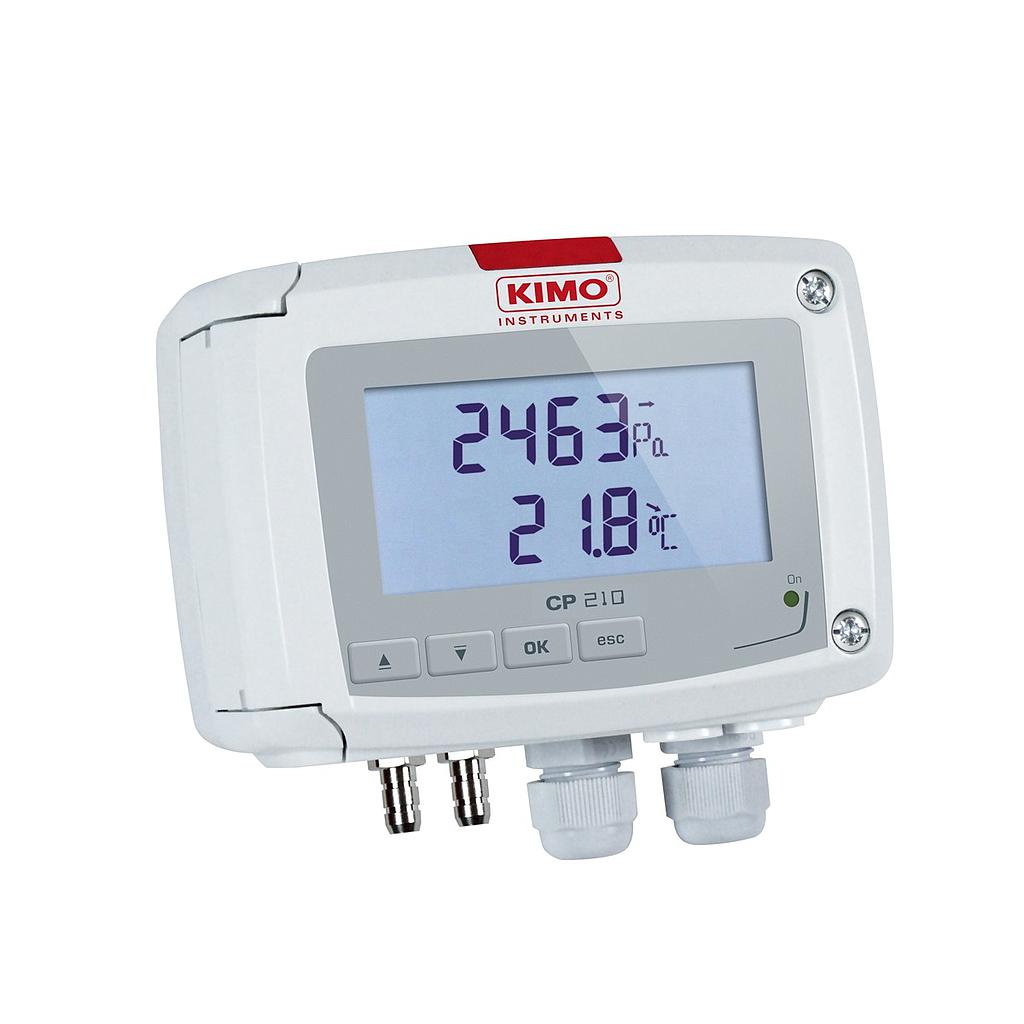

Sauermann CP212-BO-R Differential Presure Transmitter (-1000~1000 Pa)

Display: LCD, 19 digits, 2 lines, 75 x 40 mm, height 10 mm

Measuring Range: -1000 ÷ 1000 Pa

Accuracy: ±0.5% (±2Pa)

Persmissable Overpressure: 21000Pa

Pt100 Input: Pt100 terminal block, range -100 ÷ 400C (probe as option)

Output: 2 x 0/4 ÷ 20 mA or 2 x 0 ÷ 5/10VDC + 2 x SPDT (NO: 5A / NC: 3A / 240 Vac)

Supply Voltage: 24 VAC/DC

Process Temperature: -10 ÷ 50ºC

Material: ABS plastic

Process Connection: 2 x ∅6.2 mm

Cable Gland: max cable ∅8mm

Protection Class: IP65

PC Software: DIP switches or Kimo LCC100 software
