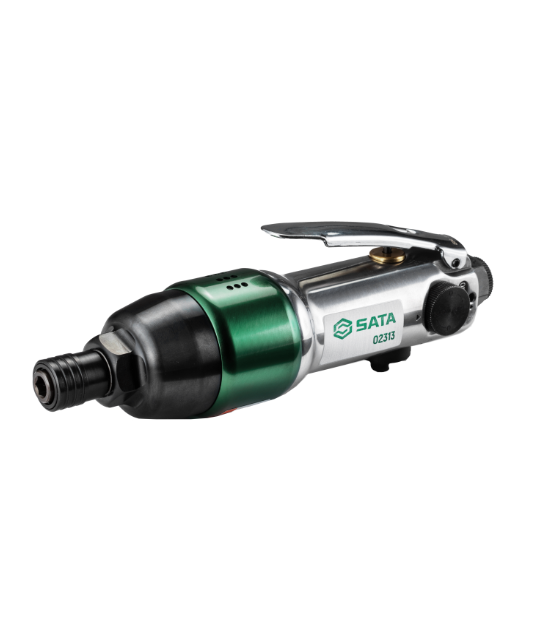

SATA 02313 Straight Handle Pneumatic Screwdriver (28Nm, 10000Rpm, M4-M5)

Output specifications: 1/4" hex

Working torque (N·M): 28

Maximum reverse torque (N·M): 40

Idle speed (RPM): 10000

Bolt tightening ability: M4-M5

Average air consumption (CFM): 7.00

Noise level dB(A): 90

Length(MM): 185

Width (MM): 65

High (MM): 47

Net weight (KG): 0.85

Air inlet size: 1/4"

Minimum tracheal inner diameter (MM): 6.35

Working air pressure (KGF/CM2): 6.35

Vibration (M/S2): 5

● Spindle and impact mechanism made of Nickel-chromium-molybdenum alloy steel through special heat treatment

● Suitable for use in the production line

● Impact chamber made of hot forged steel blank, sturdy and durable

● Cylinder made of cast steel through precision casting, featuring high sturdiness and wear resistance

● Exhaust hood capable of rotating by 360°, ensuring safe exhaust

＊It is recommended to use SATA impact-resistant bit. For details, refer to the “screwdriver, bit” sections
