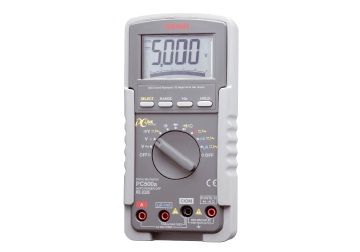

SANWA PC500A DIGITAL MULTIMETER
ManufacturerSANWA(View more products from this manufacturer)
ModelPC500A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
- MULTIMETER, DIGITAL
- DMM Type:Hand Held
- Voltage Measuring Range DC:50mV to 1kV
- Voltage Measuring Range AC:50mV to 1kV
- Current Measuring Range DC:500µA to 10A
- Current Measuring Range AC:500µA to 10A
- Resistance Measuring Range:50ohm to 50Mohm
- Frequency Measuring Range:5Hz to 200kHz
- Capacitance Measuring Range:10pF to 9.999mF
- No. of Digits / Alpha:6
- DMM Functions:AC/DC Current, AC/DC Voltage, Capacitance, Frequency, Resistance
- Ranging:Auto
- Display Count:5000
- Current Range AC:500µA to 10A
- Current Range DC:500µA to 10A
- DC Voltage Range Accuracy1:0.08%
- Interface Type:RS232 (USB opt.)
- Operating Current AC:10A
- Operating Current DC:10A
- Supply Voltage V DC:9V
- Voltage Rating V AC:1000V
- Voltage Rating V DC:1000V
- Weight:430g
Discontinued
