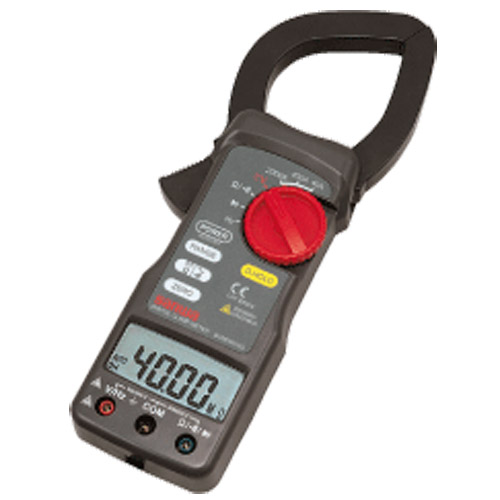

Sanwa DCM 2000AD Clamp Meter

ACA : 40/ 400/ 2000A
DCA : 40/ 400/ 2000A
ACV : 400m/ 4/ 40/ 400/ 600V
DCV : 400m/ 4/ 40/ 400/ 600V
Resistance : 400/ 4k/ 40k/ 400k/ 4000k/ 40MOhm
Frequency : 100/ 1k/ 10k/ 100k/ 1000kHz
Continuity : Buzzer sounds at less than approx. 40Ohm. Open voltage : approx. 1.5V

Bandwidth : 50/ 60Hz
Display : 4000
Clamp diameter/ Conductor size : 53mm/ 20x60mm
Withstand voltage : 5550VAC
Battery : R03 x2
Size / Weight : H240xW84xD34mm / approx. 400g
Standard accessories included : Test lead ( TL 21) , Carrying case ( C DCM2000) , Instruction manual

Discontinued

Manual
