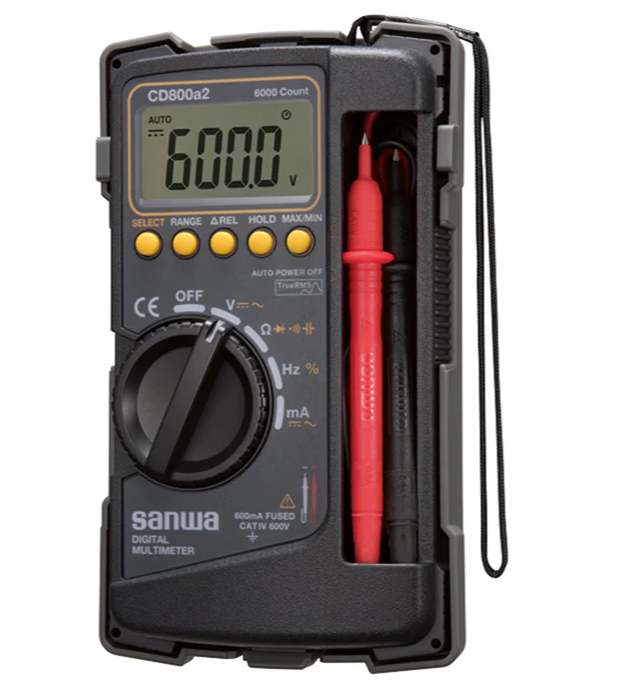

SANWA CD800a2 Digital Multimeter with Tough Body Cover (600VAC/DC, 600mAAC/DC, True RMS)

Measuring range/ Best accuracy / Resolution / Input impedance

DCV: 600m/6/60/600V / ±(0.7%+3) / 0.1mV / 10MΩ

ACV: 6/60/600V / ±(1.6%+5) / 0.001V /10MΩ

DCA: 60m/600mA / ±(2.2%+5) / 0.01mA

ACA: 60m/600mA / ±(2.8%+5) / 0.01mA

Resistance: 600/6k/60k/600k/6M/60MΩ / ±(1.2%+5) / 0.1Ω

Capacitance: 60n/600n/6μ/60μ/600μ/6mF / ±(5%+10) / 0.01nF

Frequency: 9.999/99.99/999.9/9.999k/99.99kHz / ±(0.5%+3) / 0.001Hz

Duty cycle: 20%～80% / ±(0.5%+5) / 0.1%

Continuity: Buzzer sounds at 39-60Ω or less. Open voltage: approx. 0.4V

Diode test: Open voltage: approx. 3V

Display numeral display: 6000/9999(Hz function)

Sampling rate: 3 times/sec.

Bandwidth: 40-400Hz

Fuse: 0.6A/600V 10kA Φ6.3×32mm

Battery: R6x2

Battery life: Approx.650h at DCV

Size/Mass: H176×W104×D46mm/Approx. 340g

Test lead length/Pin tip: Length: approx. 0.77m/19mm

Safety standards: IEC61010 CAT.IV 600V
