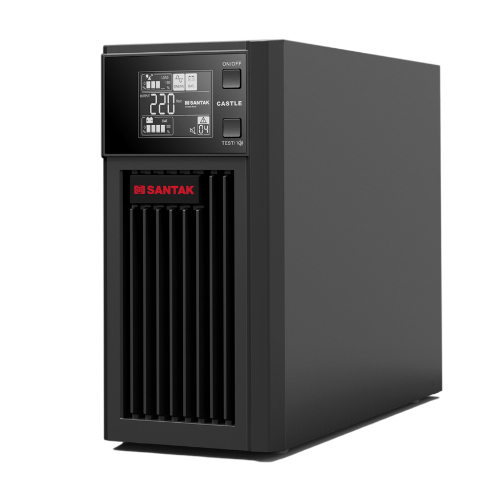

Santak Castle 2K Online UPS (2000VA, 1800W)

- Power rating (VA/W): 2000VA/1800W

- Input + Input voltage range: 100 ~ 300 VAC

+ Input frequency range: 40 Hz-70 Hz

+ Input wiring: Single phase with ground

+ Input/Output power factor: 0.99

+ Output Power Factor: 0.9

+ Nominal Output Voltage: 220/230/240VAC

+ Voltage Regulation: 1%

+ Frequency Range (Battery Mode): 50 / 60 ±0.05Hz

+ Outlet

. IEC model: IEC C13 *4

. Schuko model: or 4*SCHUKO

. NEMA model: or 4*(SCHUKO/ NEMA)

. Universal model: or 4*UNIVERSAL

+ Current Crest Ratio: 3:1

+ Voltage Distortion (THDv): < 1% @ linear load, < 5%@ non-linear load

+ Output Waveform: Pure sine wave

- Efficinecy

+ Inverter Mode: >91%

+ ECO mode: 97%

- Battery and charger

+ Battery Type: 12V / 9Ah

+ Battery quantity: 4

+ Rated Battery Voltage: 48V

+ Backup Time (@ FullLoad): > 3.5 mins

+ Recharge Time (to 90%): 4 hours

+ Charging Current: 1.5 A

- Transfer Time

+ Battery Mode<-->InverterMode: 0ms

+ Inverter Mode<-->BypassMode: 4ms (typical)

- Display(LCD): load rating/battery capacity/input/output/operating mode

- Dimension (WxHxD): 190x327x399mm

- Net Weight: 17.4 kg

- Environment

+ Operating temperature: 0-40ºC

+ Noise Level: <40dB@1 meter

- Interface

+ RS232: IEC model and UNIVERSAL model: RS232; SCHUKO model and SCHUKO/NEMA adaptable model: USB+EPO, no RS232

+ Communication Slot: Yes, comply optional cards NMC, CMC, AS400 card
