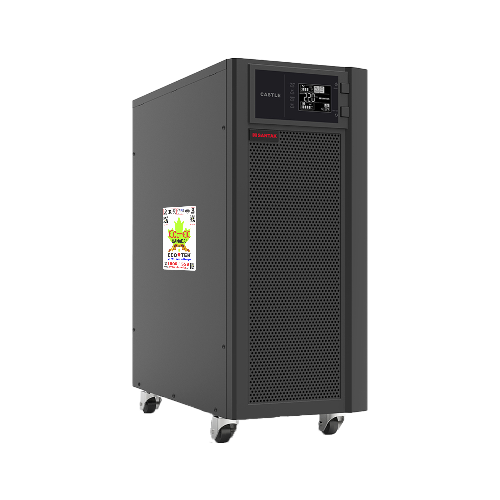

Santak C6K-LCD Online Module UPS (120VAC ~ 275VAC)

INPUT

Nominal Voltage: 220VAC

Voltage Range: 120VAC ~ 275VAC

Phase: 1 Phase (2 wires + N)

Frequency: 50/60Hz (40Hz ~ 70Hz)

Power Factor: ≥ 0.99

OUTPUT

Power Capacity: 6KVA / 5,4KW

Voltage: 220V ± 1%

Phase: 1 Phase (2 wires + N)

Waveform: True sine wave

Frequency: 50/60Hz ± 0.2Hz (Battery mode)

Efficiency: 94% (98% ECO Mode)

Overload Capability: 105% ~125% in 1 min, 125%~150% in 30 sec , > 150% in 0.5 sec

BATTERY

Battery type: 12VDC, seal acid, maintain free

Back up time: > 4 mins

INTERFACE

Control panel: On/ Off button / Seft-test / Silent

Display: LCD (Load capacity, Battery capacity, Input, Output, Operating)

Communication port: RS232, Intelligent Slot

Extendable card: AS400 Card, USB Card, CMC Card, NMC Card

Software management: Winpower

Transfer time: 0 ms

Maintenance bypass switch: Option

Parallel: Upto 3 UPSs in parallel

EPO: Option

ENVIRONMENT

Operating Temperature: 0 to 40 degrees Celsius

Operating Humidity: 20% to 90% (condensation)

STANDARDS & SAFETY

Audible Noise: < 50 dB (not buzz)

Regulations: IEC 62040, IEC 61000

DIMENSIONS / WEIGHT

Dimensions W x D x H (mm): 248 x 500 x 565

Weight (Kg): 59
