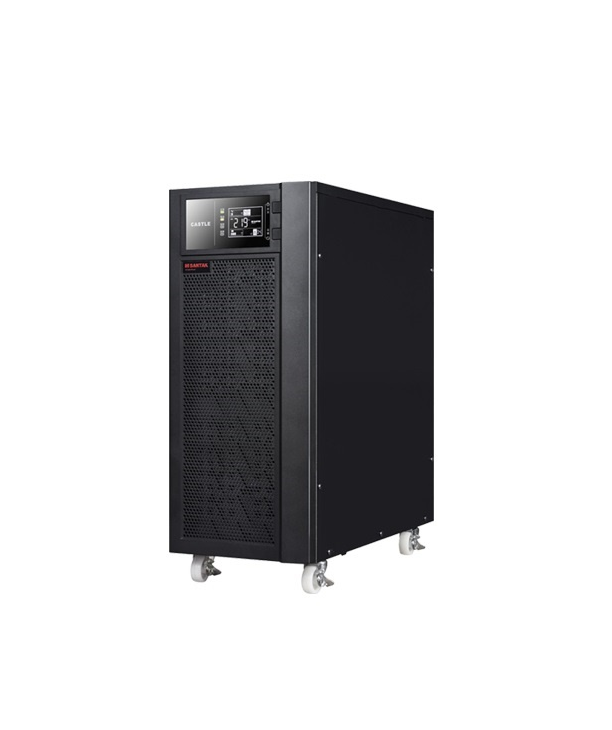

Santak C10K-LCD Online UPS

INPUT

Rated voltage: 220 VAC

Voltage range: 120 ~ 275 VAC

Phase: Single-phase (2 wires + ground)

Rated frequency: 50/60 Hz (40 ~ 70 Hz)

Power factor: ≥ 0.99

Generator compatible: Yes

OUTPUT

Capacity: 10 kVA / 9 kW

Voltage: 220/230/240 VAC ± 1%

Phase: Single-phase (2 wires + ground)

Frequency: Synchronized with input: 50/60 Hz ± 4 Hz or 50 Hz ± 0.05 Hz (battery mode)

Efficiency: 94% (98% in ECO mode)

Overload capacity:

105% ~ 125% for 1 minute

125% ~ 150% for 30 seconds

150% for 0.5 second

Output connection: Terminal box

BYPASS MODE

Automatically switches to bypass mode in case of: overload, UPS fault, low battery level

BATTERY

Battery type: 12 VDC, sealed (maintenance-free)

Backup time: > 4 minutes

Battery recharge time: 90% capacity in 8 hours

INTERFACE

Control panel: Start button / Self-test / Alarm mute / Power-off button

Status LEDs:

Utility mode

Battery mode

Bypass mode

Load level

Battery level

Fault indication

Communication port: RS232, expansion slot

Management software:

Power management and automatic shutdown software: Winpower / Webpower

Supports operating systems: Windows, Unix, Linux, Sun

Transfer time: 0 ms

OPERATING ENVIRONMENT

Operating temperature: 0 ~ 40 °C

Operating humidity: 20% ~ 90%, non-condensing

Cooling system: Forced air cooling fan

DIMENSIONS / WEIGHT

Dimensions (W x D x H) (mm): 248 x 500 x 616

Net weight (kg): 62.1
