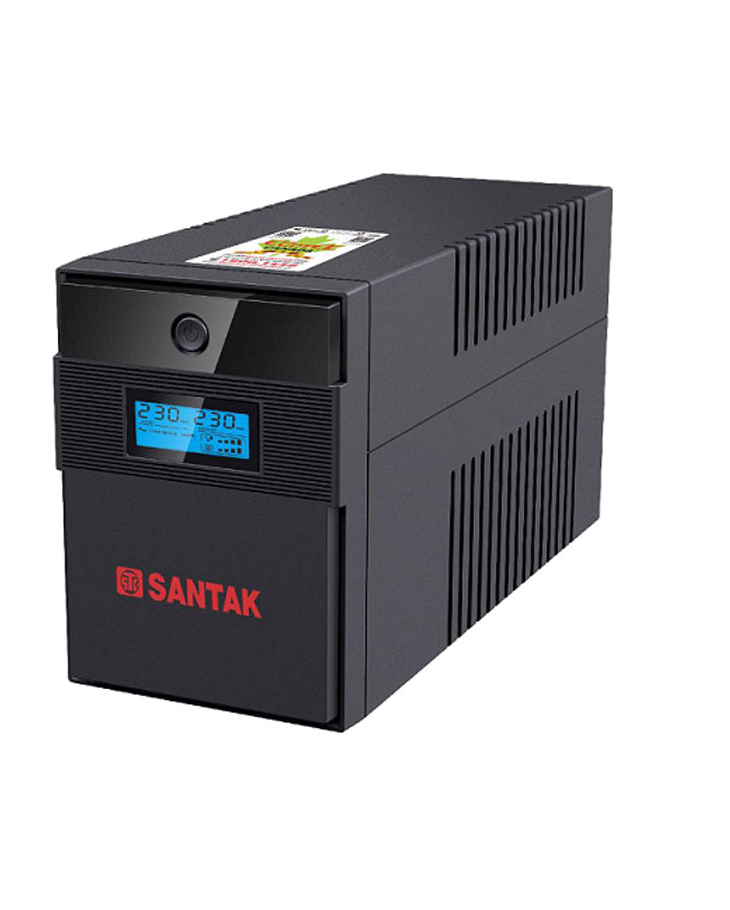

Santak BL2200-PRO UPS (170 ~ 280 VAC)

INPUT

Voltage: 220/230/240 VAC

Voltage Range: 170 ~ 280 VAC

OUTPUT

Voltage: 220 /230/240VAC

Voltage Regulation: +/-10% (Battery mode)

Frequency Range: 50Hz or 60Hz

Frequency Regulation: ±1Hz (Battery mode)

Transfer Time: Typical 4-8ms

Waveform: Modified Sine Wave

PROTECTION

Full protectionDischarge, overcharge and overload protection

ENVIRONMENT

Humidity: 0-90 % RH @ 0° to 40° C (non-condensing)

Noise Level: Less than 45dB

Software

Monitoring Software: WinPower

CAPACITY: 2200VA / 1200W

BATTERY

Type & Number: 12V / 9Ah x 2

Charging Time: 2-4h to 90% capacity

Protection: Overload, discharge and overcharge protection

Backup Time (est. 100W): 50 mins

PHYSICAL

LED Indicator: Normal, Battery mode, AC mode, Fault mode

Outlet and Connector: 6x outlets, USB port, RJ45 Surge Protection

Dimension (DxWxH): 365mm x 139mm x 195 mm

WEIGHT

Net weight: 10.6Kg
