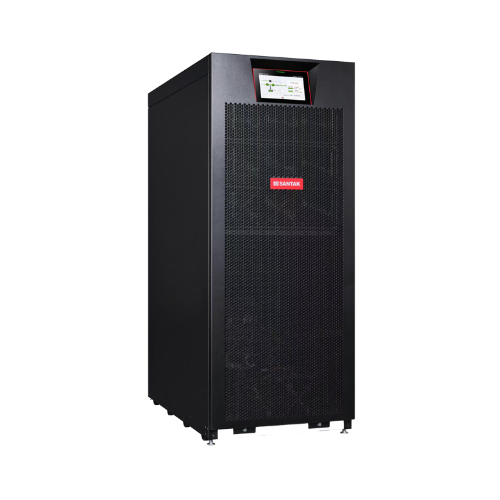

Santak 3C3 HD -40K Online UPS (40KVA, 40KW)

- Power rating: 40KVA/40KW

- Input

+ Wiring: Wiring Three phase+Neutral+Ground

+ Mains voltage range: 201 ~ 478Vac (L-L); 116 ~ 276Vac (L-N)

+ Bypass voltage range: 338 ~ 458Vac (L-L); 195 ~ 264Vac (L-N)

+ Frequency: 50/60Hz

+ Frequency range: 42 - 70Hz

+ Power factor: ≥ 0.99

+ THDi: <2% linear load; <5% non-linear load

- Output

+ Voltage : 230/400Vac default (220/380V,240/415V optional)

+ Votlage regulation: <1% @ steady state

+ Power factor 1

+ Overload:

102 ~ 110%, 60mins

111 ~ 125%, 10mins

126 ~ 150%, 1min

+ Parallel: Up to 4 units

- Efficiency

+ Online mode: Up to 96%

+ ECO mode: Up to 99%

- Battery

+ Battery Voltage: 320V~607V (432V default)

+ Max charge current: 50A

- Environment

+ Ambient temperature: 0-40°C

+ Storage temperature: –15 ~ +55°C

+ Ambient humidity: 5 - 95 %

+ Altitude No derating: < 1000m

- Physical

+ Dimension (W*D*H): Standard

+ Net Weight: 330*668*521mm

+ Gross weight: 55kg

- Quality (Safty): IEC/62040
