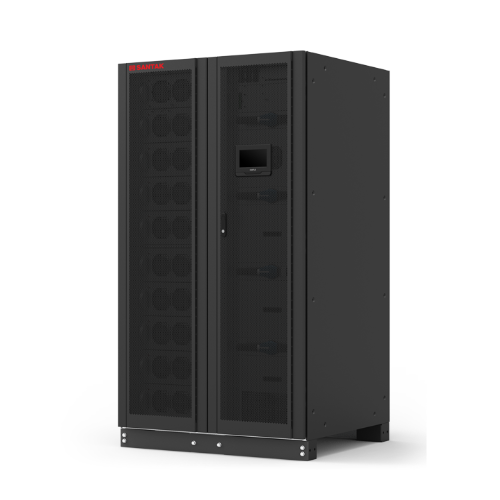

Santak 3A3 PT-125(200) Modular UPS (125 kVA, 0.9)

- Gerneral

UPS output power rating: 125 kVA, 0.9

Efficiency in double conversion mode: >96%

Efficiency in Energy Saver System: >99%

Topology: Double conversion on-line technology, three-level bridge IGBT PWM control

External paralleling: up to 4 units with Hot paralleling technology

Noise @1m, 25ºC: < 65 dBA in double conversion

UPS topology: Double conversion

Dimensions(WxDxH)mm: 608mm x 1100mm x 2050mm

Degree of protection: IP20

Altitude (max): 1000m above sea level at 40ºC

- Input

Input wiring: 3ph + N + PE

Rated input voltage: 220/380, 230/400, 240/415 V

Rated input frequency: 50 or 60 Hz, user configurable

Frequency tolerance: 40 to 72 Hz

Input power factor at 100% load: 0.99

Input THD: <3%

Soft start capability: Yes

- Battery

Battery type: VRLA、AGM、GEL

Charging method: Intelligent Battery Management or Continuous Float

Temperature compensation: Optional

Battery quantity: 36 to 42 blocks. Default is 40 blocks

Battery start capability: Yes

- Output

Output wiring: 3ph + N + PE

Rated output voltage rating: 220/380, 230/400, 240/415 50/60 Hz

Output THD: <1.5% (100% linear load); <3% (100% non-linear load)

Permitted load power factor: 0.8 lagging to 0.8 leading

Overload on inverter: 10 min 125% 60 sec 150% 300 ms > 150%

Overload on battery: 10 min 125% 60 sec 150% 300 ms > 150%

Overload on bypass: Continuous < 115%, 10 ms 1000%

- Accessories

MiniSlot connectivity (Web/SNMP, Modbus/Jbus, Relay)

External Battery Cabinet(EBC)

Parallel Tie Cabinet(PTC)

External Maintenance Bypass Switches(EMBS)

External Battery Cabinet Breaker(EBCB)
