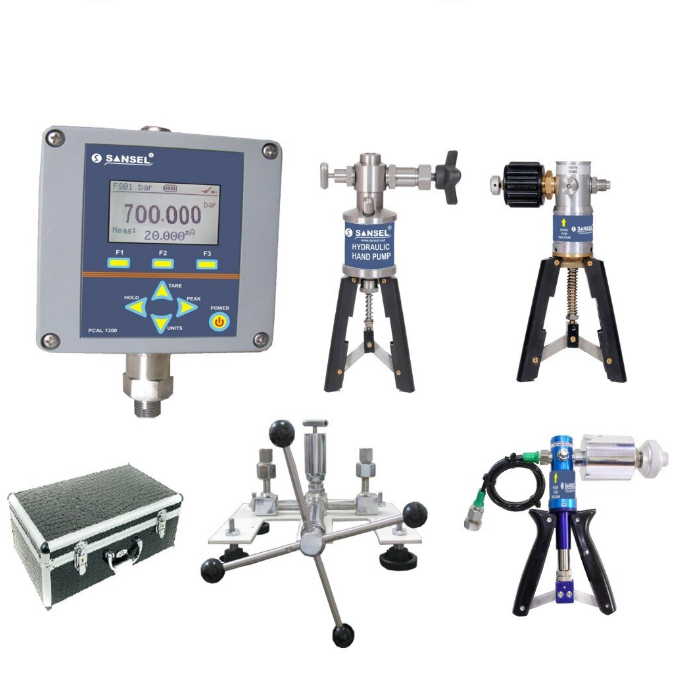

Sansel PCAL 1300/2 Precision Pressure Calibrator (-0.95~2bar; ±0.05%FS)

Range (bar): -0.95~2 bar

Pressure media: Air

Pressure pump: HP-04

Pressure Port: 1/4'' & 3/8'' BSP Female

Pump dimension in mm (Appox.): 170 x 45 (Height x Dia)

Pump weight (gms) (Appox.): 700

Resolution (bar): 6 digit user selectable

Instrument Port: ¼’’ BSP Male x 10 mm long

Instrument dimension: 100 x 100 x 55 (W x H x D) mm

Instrument weight: 400gms (Appox.)

Stability time: 1 to 2 mins

Accuracy: ± 0.05%FS

Display: 128 x 64 COG Graphic LCD with White LED Back light

Pressure units * (selectable): bar, mbar, Mpa, kpa, kg/cm², inHg, cmHg, mmHg, mH2o, ftH2o,inH2o, cmH2o, mmH2o

Pressure zero: One touch zero provided on front key

Pressure peak: Maximum &minimum with user reset option

Pressure overflow: FS X 2 (Max.)

Pressure burst: FS X 3 (Max.)

Temp. Measure: RTD -PT 100 (2, 3, 4, wire selectable)

Temp. Range: -199.999 ~ 850.000mA

Measure: 0-24 mA (scalable)

Display scale: -99999 ~ 99999 counts (for mA measure input)

Switch test: Provided

Display Hold: One touch hold provided on front key

Power supply: 9V DC ±5% / 200mAh Rechargeable battery with battery life 4 hours without back light ( or) 9V DC adapter /230V AC supply operated

PC Interface: RS 485

PC Software: Windows based semi-automatic calibration software (optional)
