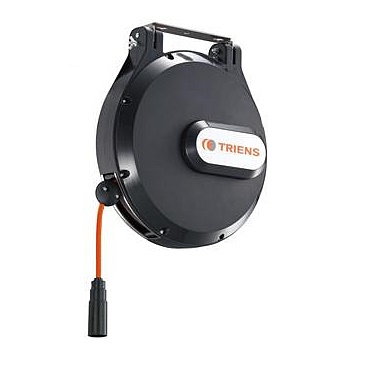

SANKYO-TRIENS THM-315 Air Hose Reels
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Diameter: 8mm
Size:440x397x195mm
Length: 15m
Maximum Working pressure: 1.4Mpa
Weight: 7.4kg
Specifications
| Model | Hose | Maximum Working Pressure (MPa) |
Inlet Hose | Dimensions (mm) |
Body Weight (kg) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hose materials |
Connection | Inner Diameter (mm) |
Length (m) |
Connection | Length (m) |

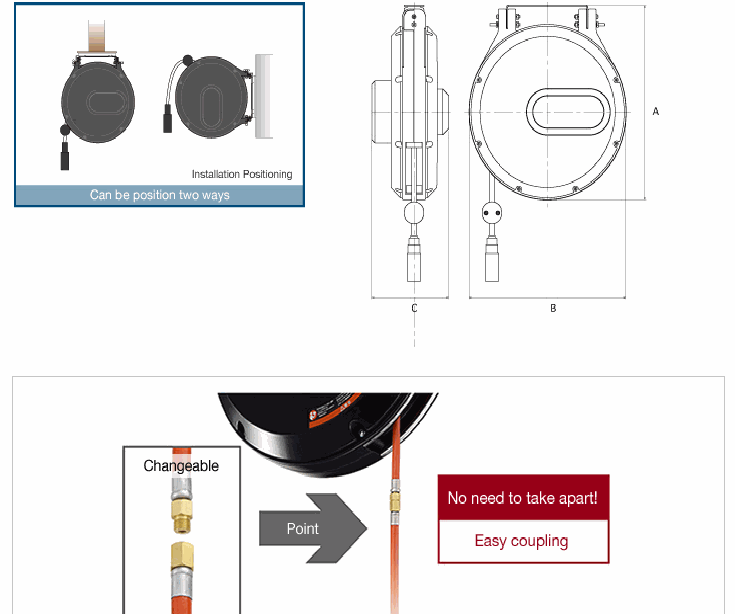

A | B | C | |||
| THS-210 | PU | Female G1/4 |
6.5 | 10.0 | 1.4 | Swivel Fitting male R1/4 |
0.8 | 332 | 310 | 163 | 3.8/3.9 |
| THS-210S | Anti-Spark PU |
Female G1/4 |
6.5 | 10.0 | 1.4 | Swivel Fitting male R1/4 |
0.8 | 332 | 310 | 163 | 3.8/3.9 |
| Model | Hose | Maximum Working Pressure (MPa) |
Inlet Hose | Dimensions (mm) |
Body Weight (kg) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hose materials |
Connection | Inner Diameter (mm) |
Length (m) |
Connection | Length (m) |
A | B | C | |||
| THM-310 | PU | Female Rc3/8 |
8.0 | 10.0 | 1.4 | Swivel Fitting male R3/8 |
1.0 | 440 | 397 | 195 | 7.0 |
| THM-315 | PU | Female Rc3/8 |
8.0 | 15.0 | 1.4 | Swivel Fitting male R3/8 |
1.0 | 440 | 397 | 195 | 7.4 |
| THM-215 | PU | Female G1/4 |
6.5 | 15.0 | 1.4 | Swivel Fitting male R3/8 |
0.8 | 440 | 397 | 195 | 7.0 |
| THM-220 | PU | Female G1/4 |
6.5 | 20.0 | 1.4 | Swivel Fitting male R3/8 |
0.8 | 440 | 397 | 195 | 7.3 |
| THM-310S | Anti-Spark PU |
Female Rc3/8 |
8.0 | 10.0 | 1.4 | Swivel Fitting male R3/8 |
1.0 | 440 | 397 | 195 | 7.0 |
| THM-315S | Anti-Spark PU |
Female Rc3/8 |
8.0 | 15.0 | 1.4 | Swivel Fitting male R3/8 |
1.0 | 440 | 397 | 195 | 7.4 |
| THM-215S | Anti-Spark PU |
Female G1/4 |
6.5 | 15.0 | 1.4 | Swivel Fitting male R3/8 |
0.8 | 440 | 397 | 195 | 7.0 |
| THM-220S | Anti-Spark PU |
Female G1/4 |
6.5 | 20.0 | 1.4 | Swivel Fitting male R3/8 |
0.8 | 440 | 397 | 195 | 7.3 |
Notes:
• Read the manual thoroughly and use it properly.
• The actual product color may differ.
• Product specifications are subject to change for improvements without notice.
• These products are for indoor use only.
