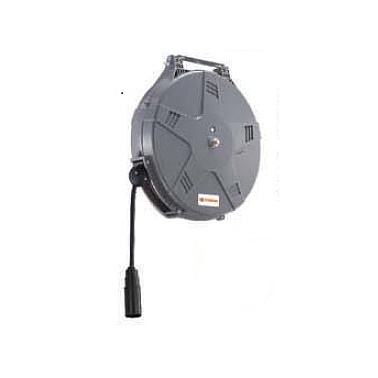

SANKYO-TRIENS SHA-3BSZ Air Hose Reels (8mm x15m)
ManufacturerSANKYO-TRIENS(View more products from this manufacturer)
ModelSHA-3BSZ
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Diameter: 8mm
Length: 15m
Maximum Working pressure: 1.4Mpa
Weight: 6.9kg
Size: 408x384x173mm

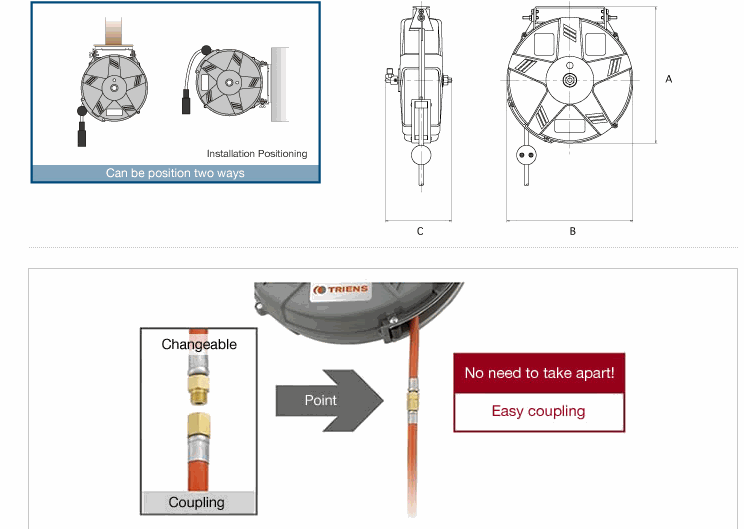

Specifications
| Model | Hose | Maximum Working Pressure (MPa) |
Inlet Hose | Dimensions (mm) |
Body Weight (kg) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hose materials |
Connection | Inner Diameter (mm) |
Length (m) |
Connection | Length (m) |
A | B | C | |||
| SHS-213A | PU | Female G1/4 |
6.5 | 13.0 | 1.4 | Swivel Fitting male R1/4 |
0.8 | 314 | 290 | 152 | 3.5 |
| SHS-310A | PU | Female Rc3/8 |
8.0 | 10.0 | 1.4 | Swivel Fitting male R3/8 |
0.8 | 314 | 290 | 152 | 3.5 |
| SHS-210Z | PU | Female G1/4 |
6.5 | 10.0 | 1.4 | Swivel Fitting male R1/4 |
0.8 | 314 | 290 | 152 | 3.5 |
| SHS-210S | Anti-Spark PU |
Female G1/4 |
6.5 | 10.0 | 1.4 | Swivel Fitting male R1/4 |
0.8 | 314 | 290 | 152 | 3.5 |
| Model | Hose | Maximum Working Pressure (MPa) |
Inlet Hose | Dimensions (mm) |
Body Weight (kg) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hose materials |
Connection | Inner Diameter (mm) |
Length (m) |
Connection | Length (m) |
A | B | C | |||
| SHM-215 | PU | Female G1/4 |
6.5 | 15.0 | 1.4 | Swivel Fitting male R1/4 |
0.8 | 366 | 367 | 159 | 4.2 |
| SHM-313 | PU | Female Rc3/8 |
8.0 | 13.0 | 1.4 | Swivel Fitting male R3/8 |
0.8 | 366 | 367 | 159 | 4.1 |
| Model | Hose | Maximum Working Pressure (MPa) |
Inlet Hose | Dimensions (mm) |
Body Weight (kg) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hose materials |
Connection | Inner Diameter (mm) |
Length (m) |
Connection | Length (m) |
A | B | C | |||
| SHR-35Z | PU | Female Rc3/8 |
8.0 | 15 | 1.4 | Swivel Fitting male R3/8 |
1.0 | 408 | 384 | 173 | 6.8 |
| SHR-20Z | PU | Female G1/4 |
6.5 | 20 | 1.4 | Swivel Fitting male R1/4 |
0.8 | 408 | 384 | 173 | 7.2 |
| SHA-3BSZ | Anti-Spark PU |
Female Rc3/8 |
8.0 | 15 | 1.4 | Swivel Fitting male R3/8 |
1.0 | 408 | 384 | 173 | 6.9 |
| SHA-20Z | Anti-Spark PU |
Female G1/4 |
6.5 | 20 | 1.4 | Swivel Fitting male R1/4 |
0.8 | 408 | 384 | 173 | 7.3 |
Notes:
• Read the manual thoroughly and use it properly.
• The actual product color may differ.
• Product specifications are subject to change for improvements without notice.
• These products are for indoor use only.
