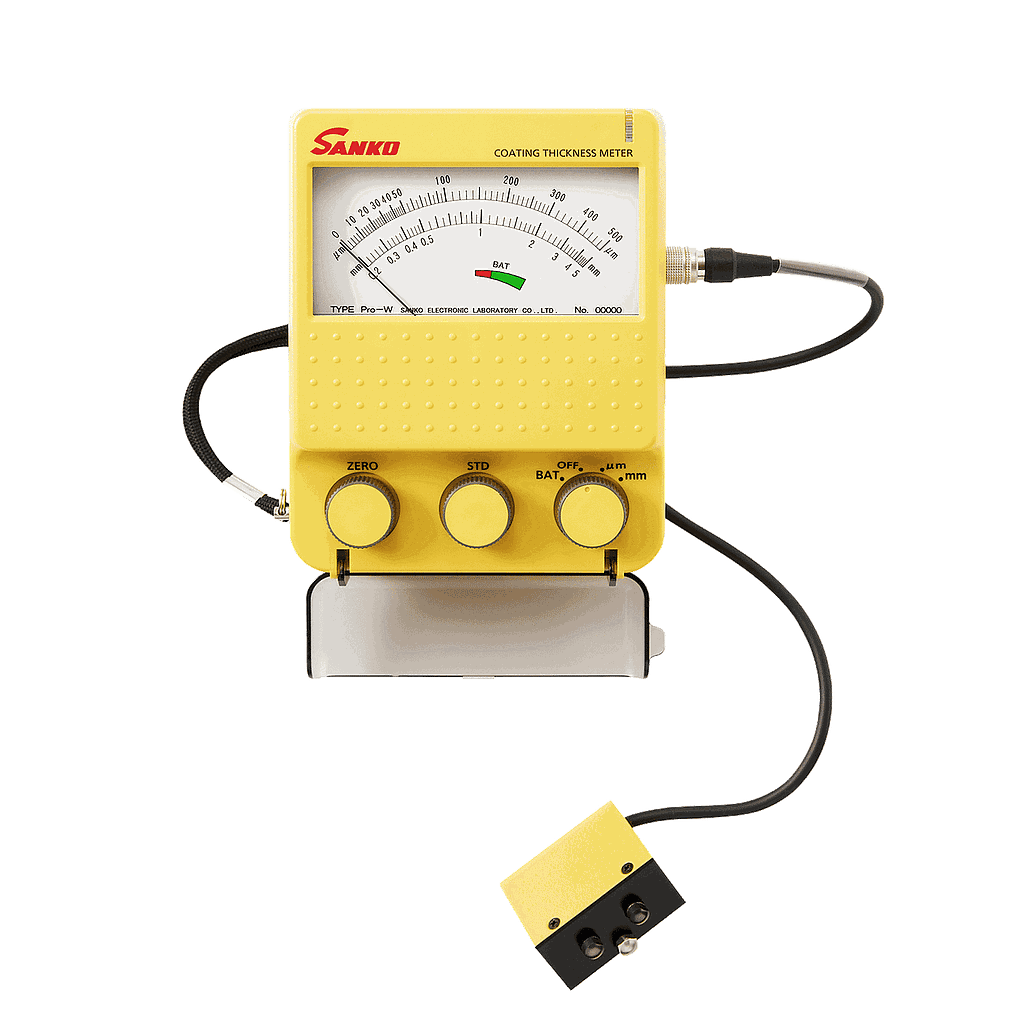

SANKO Pro-W Electro-magnetic Coating Thickness Meter (2 poles; 0~500μm; 0.2~5mm)

Method: Electromagnetic Type

Measuring object: 0~500μm; 0.2~5mm (2 line graduations)

Measuring range: 0~500μm; 0.2~5mm

Measuring accuracy:

±2μm against uniform surface

±5% of reading (whichever is larger)

Probe:

+ 2-pole type

+ Electrode Dia.: φ6mm

+ 2-pole's gap: 16mm

+ Electrode: Ultra anti-abrasive with CVD treatment

Power source: Dry batteries (1.5V) x 6 pcs

Operating temperature: 0~40 (w/o condensation)

Dimensions: 137(D)x50(H)x110(W)

Weight: ≈470g

Accessories: Carrying case, standard plates, Standard plate case, Batteries, Instruction manual
