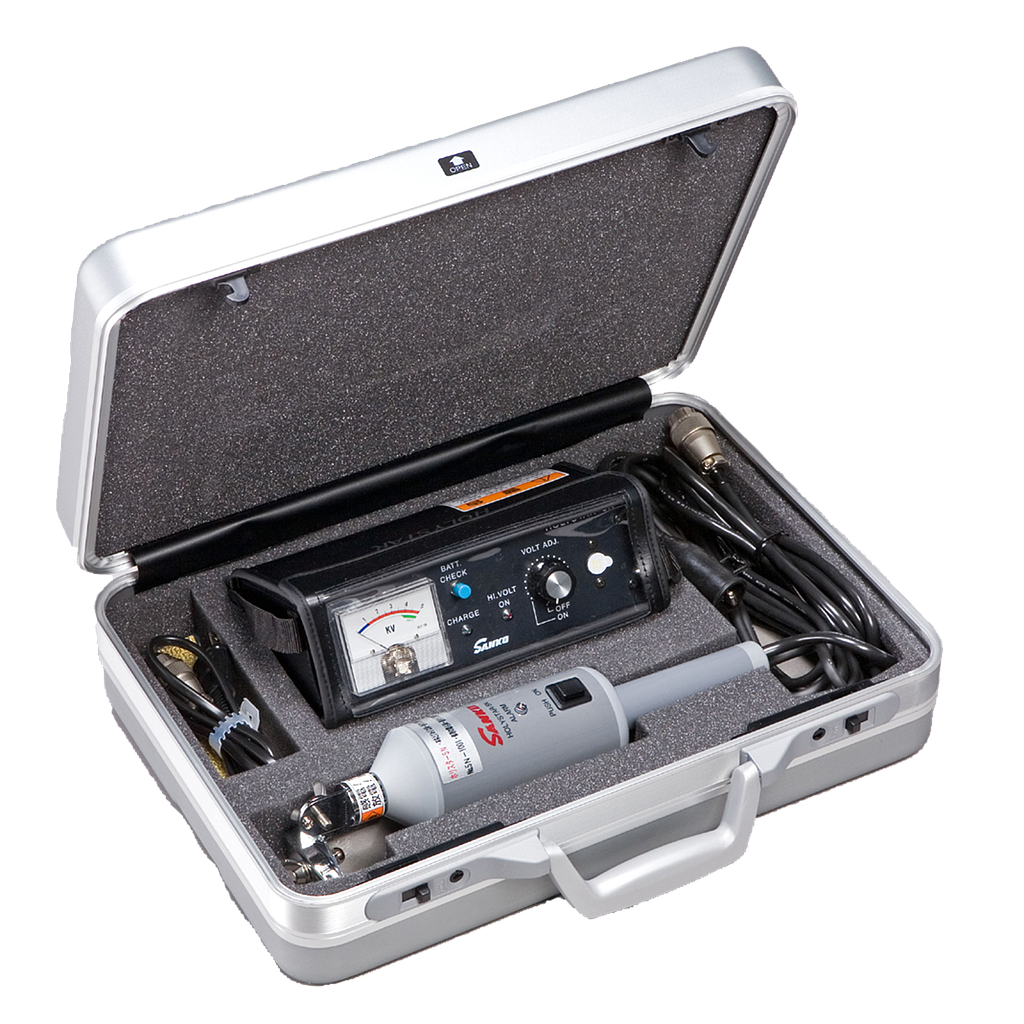

SANKO HOLYSTAR 5N Pinhole Detector (1~5kV)

Type: Low frequency, High voltage, Pulse discharge type

Output voltage: 1~5kV (Peak value)

Alarm method: Lamps & Buzzer

Applicable thickness: <1mm

Operating hours: ≈5 hours (Max. output voltage)

Operating temperature: 0~40°C (Non-condensing)

Probe (Standard attachment)

+ PVC, with brush holder, Length: φ60 (Grip φ26) x330mm

+ Grounding cord (5m): 1pc, Probe cord (1.5m): 1pc

Recharging Power source: AC 100V, 50/60Hz, 80VA

Power source: Built-in Ni-MH battery with battery check function

Dimensions: 70(W)x120(H)x220(D) mm

Weight: 1.1kg (Without probe & accessories)

Standard accessories:

+ Flat type brush electrode (30x150mm brass)

+ Recharging cord (1m): 1pc

+ Soft case: 1pc

+ Attache case: 1pc. ≈2.6kg
