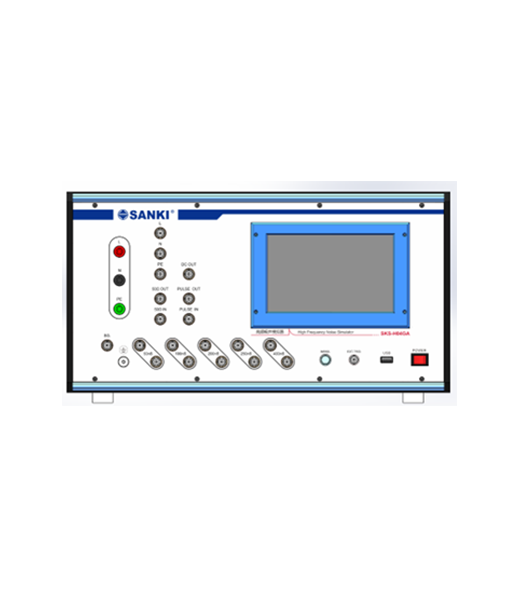

SANKI SKS-H04GA High Frequency Noise Simulator

The output voltage:

1V～4000V adjustable (open circuit)

0.5V～2000V adjustable (50Ω load)

Pulse polarity: Positive, negative, positive and negative alternating

Square Wave

Pulse Width: 50～1000ns adjustable (50ns step)

Rise time: ＜1ns

Output Impedance: 50Ω

Pulse repetition mode

Single trigger: Manual button

External trigger: TTL level 100Hz (MAX)

Internal trigger: 1～100Hz

Phase injection method: asynchronous, Synchronous injection phase 0～359°

Coupling and Decoupling Networks: Built-in single-phase three-wire coupling/decoupling network

Coupling and decoupling network capacity

AC: AC230V/16A

Frequency: 50/60Hz

DC: DC230V/16A

Instrument working power supply: AC220V 50/60Hz

Test method: Phase-to-phase differential mode testing

Common mode test of phase and ground

Dimensions (W x D x H): 430mm×400mm×250mm

Weight: About 20kg
