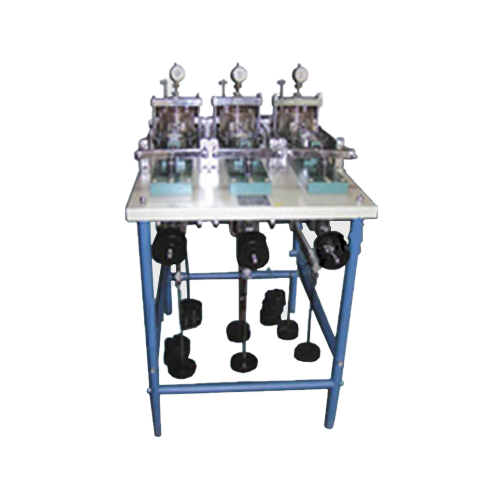

Samyon ZLB-1 Triplex Rheology Direct Shear Test Apparatus (1.8kN)

Application:

The apparatus is used to test shearing deformation quantify of the specimens, to exert certain normal force and shearing force on the shearing surface so as to judge resisting creep properties of the specimens.

Specifications:

Specimen size: Ø61.8×20mm

Max.shear force: 1.8kN

Max.normal force: 1.8kN

Measuring range of vertical deformation: 0~10mm Measuring accuracy:±1%

Measuring range of horizontal deformaion: 0~10mm Measuring accuracy:±1%(measuring range of micrometer:0~1mm)

Ambient requirement: Temperature:15~25ºC, Humidity:100%

Power supply: 220V ±10% , 50Hz
