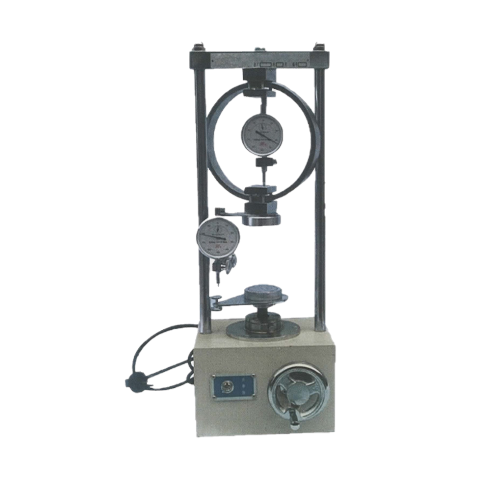

Samyon YSH-2 Lime-soil Unconfining Pressure Test Apparatus (5kN)
ManufacturerSamyon(View more products from this manufacturer)
ModelYSH-2
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Application:
The Unconfined Compression Tester is used to determine unconfined compression strength of specimen of the material stabilized with inorganic binders etc. (maximum grain size is less than 5mm) and it consists of proving ring, base assembly, handle and lift plate etc.
Specifications:
1. Capacity: 5kN maximum
2. Unit pressure : ＜2.5MPa
3. Specimen dimension寸: Ø50 x 50mm, Ø50 x 100mm
4. Speed rate: 1mm/min.
5. Weight : 16kg
