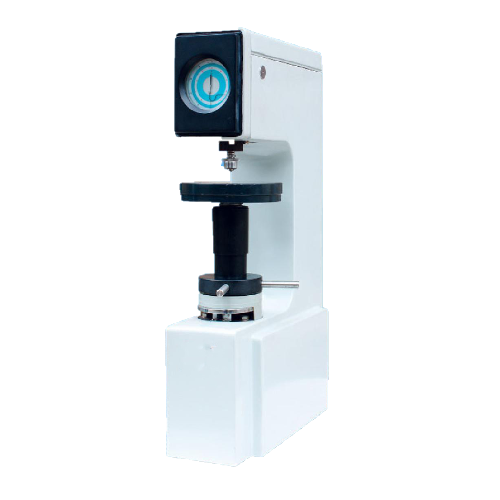

Samyon XHRD-150 Motor-Driven Plastic Rockwell Hardness Tester (50-115HRR)

Feature & Use

* Frictionless loading shaft, high precision testing force

* Automatic testing process, no human operating error

* Precision conforms to the Standards of JB/T 7409

It's suitable to determine the Rockwell hardness of plastic, composite materials, all kinds of friction materials, soft metals and non-metal soft materials.

Specifications

Measuring range: 70-100HRE, 50-115HRL, 50-115HRM, 50-115HRR

Test force: 588.4, 980.7, 1471N (60, 100, 150kgf)

Max. height of test piece: 150mm

Depth of throat: 135mm

Min. scale value: 0.5HRN (T)

Power supply: 220V AC or 110V AC, 50 or 60Hz

Dimensions: 505 x 250 x 700mm

Weight: approx.70 kg

Standard accessories

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Steel ball penetrator: 1/8", 1/4", 1/2", 1 pc. each

Plastic Rockwell standardized block: 4 pcs.
