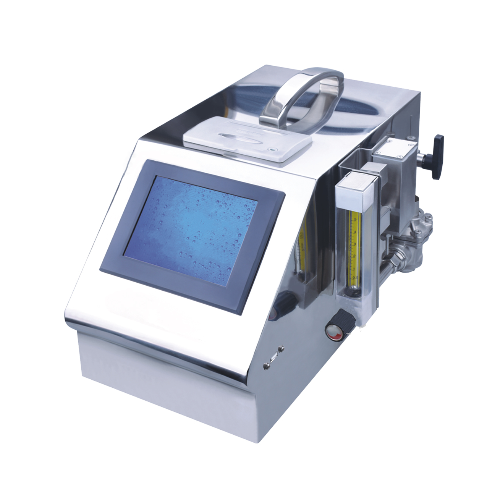

Samyon UC1000S Total Organic Carbon Analyzer (0.001 mg/l-1.0 mg/l)

Application Fields

1. The instrument can be used to detect the concentration of organic carbon in purified water, injection water and deionized water in pharmaceutical industry, and TOC in ultra-pure water in semiconductor industry.

2. It can be used to verify the cleaning effect in the process of cleaning verification in pharmaceutical and biochemical fields.

3. The instrument has on-line detection function. It can monitor on-line the water-making system of pharmaceutical industry, ultra-pure water preparation system of semiconductor industry, wafer process, deionized water preparation process of power plant, etc.

Technical parameters

Power supply: AC220V ± 22V

Frequency: 50HZ ± 1HZ

Power: 95W

Shape size: 200*400*235mm

Weight: 12.5kg

TOC detection range: 0.001 mg/l-1.0 mg/l

Detection accuracy: ±5%

Detection time: ≤ 4min / time

Response time: ≤15 min

Sample flow rate: 0.5 ml/min

Sample temperature: 1-95℃

Environmental humidity: ≤85%RH

Ambient temperature: 10-40℃

Repetitive error: ≤3%

Zero drift:±5%

Range drift:±5%

Linear error: +5%
