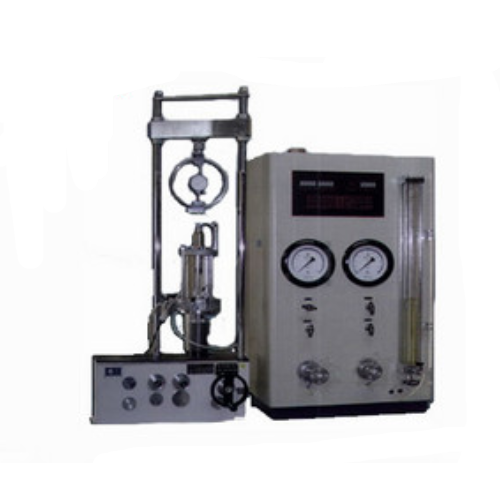

Samyon TSZ30-2.0 Strain Controlled Triaxial Instrument (30kN)

Application:

TSZ30-2.0 Bench Triaxial Test Apparatus is used to determine the strength and deformation characteristics of the soil specimen under the static axial load. It can perform unconsolidated-undrained shear test (UU), consolidated-undrained shear test (CU) and consolidated-drained shear test (CD). With high confining pressure, it does not need air-compressor and nitrogen cylinder. It can meet test requirements for civil engineering projects such as large buildings and dam construction etc.

Specifications:

1. Specimen : Ø39.1 x 80mm, Ø61.8 x 125mm

2. Capacity : 30kN

3. Platen travel : 0 – 90mm

4. Strain rate: 0.0024 – 4.5mm/min. Mechanical speed with 15 gears

5. Confining pressure : 0 – 2MPa Digital control and display

6. Back pressure : 0 – 0.8MPa Digital control and display

7. Pore pressure : 0 – 2MPa

8. Volume deformation : 0 – 50ml, minimum division: 0.1ml

9. Power supply : 220V ±10% 50Hz

10. Dimension : Main unit : 500 x 430 x 1200mm (L x W x H)

Controller : 500 x 500 x 925mm (L x W x H)

11. Weight : 175kg
