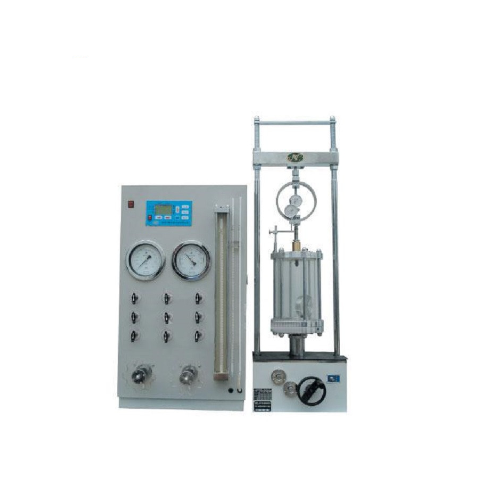

Samyon TSZ–6 Strain Controlled Triaxial Test Apparatus (0 – 2.0MPa)

Application:

The Apparatus is used to determine the resisting shear strength of the soil specimen with maximum confining pressure of 2.0MPa and specimen dimension is of Ø61.8 x 125mm, Ø101 x 220mm. The apparatus can perform unconsolidated-undrained shear test (UU), consolidated-undrained shear test (CU), and consolidated-drained (CD) shear test. It consists of frame, test control device, pressure chamber and specimen tools etc.

Specifications:

1. Capacity: 60kN

2. Specimen : Ø61.8 x 125mm, Ø101 x 220mm

3. Strain rate : 0.0024 – 4.5mm/min

4. Platen forward/reverse : 0 – 100mm

5. Confining pressure : 0 – 2.0MPa

6. Back pressure : 0 – 0.8MPa

7. Pore pressure : 0 – 2.0MPa

8. Volume deformation : 0 – 100ml, minimum resolution: 0.2ml

9. Power supply : 380V 50Hz

10. Weight : 240kg (including main unit、controller、measuring equipment etc.)
