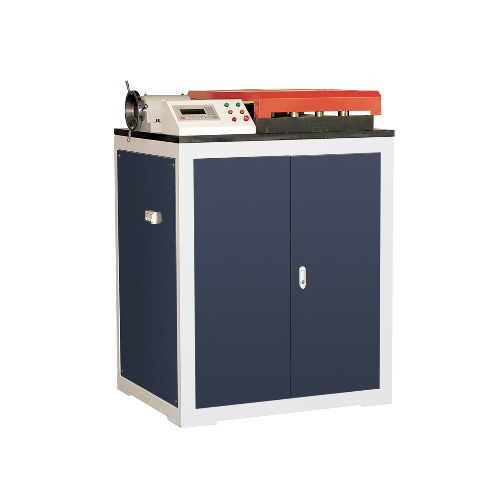

Samyon SYW-40B Laboratory Equipment Steel Pipe Bending Machine Testing Instrument (Φ25～Φ40)

Main Function and Usage

The main technical parameter of this machinery conformed to GB1499.2-2007, Steel foSteel bar bending testing machine is a specialize equipment for cold bending test and flat bending test for steel bar.

The steel bar bending testing machine has characters including, compact structure, easy operation, visual display of bending angle, easily repairing, operation stability, safety,low noise, and etc.

Main Specifications and Technical Parameter

Diameter Range of Bending Steel Bar or Pipe(mm): randomized Φ25～Φ40,（optional formΦ6 toΦ22）

Bending Angle of steel Bar/ Pipe: 0°～180°random setting

Reverse Bending Angle of steel Bar: 0°～180°random setting

Rotating Speed of Working Plate: ≤3.7r/min

Motor Power(kW): 1.5

Overall Dimension(mm): 1050×750×1200

Weight(kg): 750
