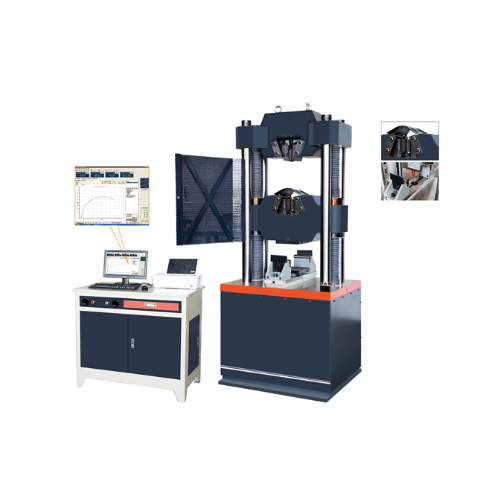

Samyon SYW-1000D Computerized Servo Hydraulic Universal Testing Machine (1000 kN)

Main Function and Usage:

This product is mainly used for the tensile test of metal materials and component, testing the tensile strength, yield strength, stipulated plastic extension strength, elasticity modulus, percentage elongation after fracture and other mechanical performance index. Hydraulic wedge clamping. The testing results can be automatically stored, and the testing report, including the testing data and testing curve would be generated and printed automatically.

Main Specifications and Technical Parameter:

Maximum Testing Force: 1000 kN

Class of Testing Machine: 0.5/1

Efficient Measure Range: 2%-100%FS

Relative Value Display Accuracy: ±0.5%/±1%

Discrimination of Testing Force (mm): 0.005

Adjustment Range of Stress Rate Control: 1MPa/s~~60MPa/s

Accuracy of Stress Rate Control: ±1%/±2%

Discrimination of Deformation Measure (mm): 0.005

Adjustment Range of Strain Rate Control: 0.00025/s~~0.0025/s

Accuracy of Strain Rate Control: ±1%/±2%

Discrimination of Displacement Measure (mm): 0.001

Adjustment Range of Displacement Rate Control: 0.00025/s~~0.0025/s

Accuracy of Displacement Rate Control: ±0.5%/±1%

Range of Holding Control of Stress, Strain and Displacement: 0.3%~~100%FS

Accuracy of Holding Control of Stress, Strain and Displacement: ±1%

Tensile Volume(mm): 700

Compression Volume(mm): 550

Column Space(mm): 550

Round Specimen Clamping Range(mm): Φ6-Φ45

Flat Specimen Clamping Thickness(mm): 0-30

Max. Width of Flat Specimen Clamping(mm): 75

Pressure Plate Dimension(mm): Φ160

Overall Dimension(mm): 910*830*2300

Oil Source Console Dimension(mm): 1150*800*1000

Total Motor Power(kW): 2

Total Weight(kg): 3200
