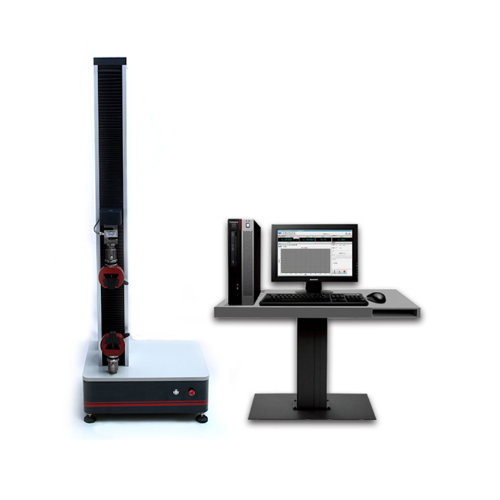

Samyon SYW-1/2/3/5 Universal Single Pull Tensile Strength Testing Machine (1/2/3/5KN)

Application:

It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.

It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

Standard:

ASTM, ISO, DIN, GB and other international standards.

Main Technical Parameters:

Max. Load: 1/2/3/5KN

Structure: Single Column Double Spaces

Control Method: Computer Control

Load Accuracy: 1 Class

Load Range: 2%~100% FS

Displacement Resolution: 0.01mm

Test Speed: 0.05~500mm/min

Tensile Space: 600mm (Can be customized)

Compression Space: 600mm (Can be customized)

Power Supply: AC220V±10%, 50Hz (Can be customized)

Grips: Wedge Type, Plate Type And Other Grips As Customers’ Demand

Dimension: 425*400*1315mm

Weight: 200.00 KG
