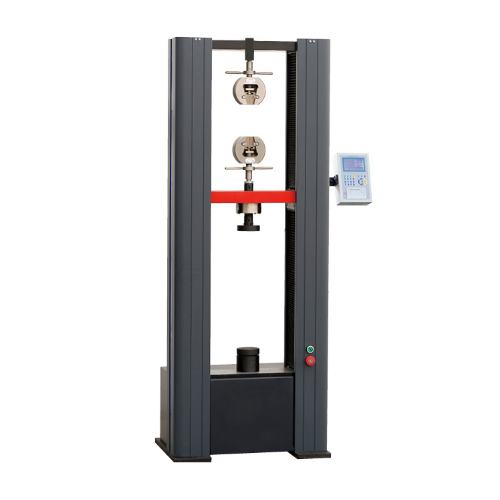

Samyon SYS-10 Digital Display Universal Tensile Compression Strength Tester (10 kN)

Main Function and Usage:

1. The SYS series of testing machines are suitable for the tensile testing of metal and non-metal materials, and the added optional implement suiting for compression, bending, cutting , stripping, splitting and other testings.

2. Possessing with the function of digital display of testing force,continuously tunable testing speed, automatically shutting up power when test Specimen being snapped, and peak holding.

Adaptable Standard: GB,ISO,ASTM,DIN

Main Specifications and Technical Parameter:

Max. Testing Force: 10kN

Measure Range of Testing Force: 2%-100%FS

Accuracy of Testing Force: Over ±1%

Discrimination of Displacement(mm): 0.001

Accuracy of Displacement Measure: Over ±1%

Tensile Volume(mm): 800

Compression Volume(mm): 800

Testing Volume(mm): 800

Range of Speed Control(mm/min): 0.01~300

Accuracy of Speed Control: Over ±1%

Accuracy of Deformation Value Display: Over ±1%

Weight (kg): 250
