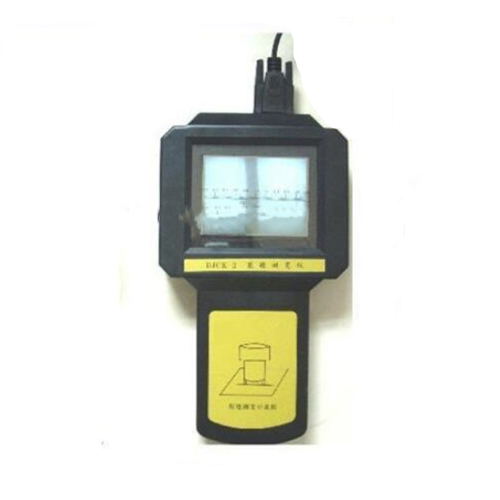

Samyon SYCK-2 Crack Width Measurement Instrument (0.02-2.0mm, 0.01mm)

Application:

Mainly used for testing the crack width of bridge,channel,concrete plate,metallic surface.

Feature:

1. high light supper lager LCD,display the crack image’s edge clearly and read conveniently.

2. The newest technology of formation of image of electronic,recover the original crack actually.

3. The microcosmic camera measurement probe is made of totally stainless steel,resistance to wear and drop.

Specification:

Amplified multiple: 40(standard); 50(optional)

Test range: 0.02-2.0mm

Interpolation: 0.01mm

Voltage: 12VDC(8 recharger battery)

Size: 270*15*50mm

Measurement probe: 40*40*60mm

Weight: 800g
