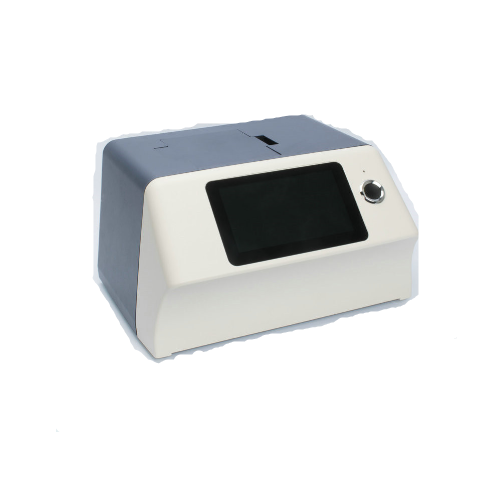

Samyon SY6010 Benchtop Grating Spectrophotometer (Φ 154mm)

Optical Geometry: Reflectance: d/8 (SCI⪰ Include UV/Exclude UV)

Transmittance: d/0 (SCI⪰ Include UV/Exclude UV)

Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7

Specular Component: Reflectance: SCI&SCE

Transmittance: SCI&SCE

Integrating Sphere Size: Φ 154mm

Sensor: 256 Image Element Double Array CMOS Image Sensor

Light Source Device: 360nm-780nm Combined LED Lamp, 400nm cut-off, UV Lamp

Illuminants: D65, A, C, UV, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12

Spectrophotometric Mode: Concave Grating

Observer Angle: 2°/10°

Repeatability: Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%)

Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%)

Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument Error: Φ25.4mm/SCI, Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles)

Wavelength Range: 360-780nm

Wavelength Pitch: 10nm

Semiband Width: 10nm

Reflectance Range: 0~200%

Measuring Aperture: Reflective: Φ30mm/Φ25.4mm,Φ10mm/Φ8mm, Φ6mm/Φ4mm;

Transmissive: Φ30mm/Φ25.4mm;

Color Space: CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, Munsell, s-RGB, HunterLab, DIN, βxy

Color Difference Formula: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter), DIN ΔE99

Displayed Data: Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset

Colorimetric Index: WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE/ISO), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity, Gardner Index, Pt-Co Index, 555 Index,

PC Terminal Software: SQCX

Data Storage Capacity: Standard: 2000 Pcs; Sample: 20000 Pcs.

(One PCS can include both SCI and SCE)

Data Port: USB

Locating Method: Camera Locating

Measurement Mode: Single Measurement & Average Measurement

Screen: 7" TFT Capacitive Screen-touch Display

Light Source Device Life: 5 years, more than 3 million times measurements.

Power Supply: DC 24V, 2A Power Adapter

Size: 370×300×200mm

Weight: 9.6kg

Language: English & Chinese

Working Environment: Temperature: 0~40℃; Humidity: 0~85% (No Condensation)

Storage Environment: Temperature: -20~50℃; Humidity: 0~85% (No Condensation)

Standard Accessory: White and Black Calibration Board, Checking Green Board, Sample Holder, Φ4mm, Φ8mm, Φ15mm, Φ25.4mm Aperture, Power Adapter, USB Cable, User Guide, PC Software

Optional Accessory: Micro-printer, Transmissive Test Clamp Component
