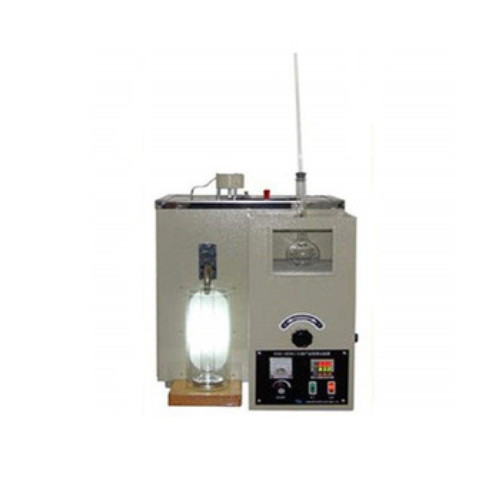

Samyon SY-6536C Low-temperature Distillation Apparatus (1000 W)

1. Power supply: AC 220 V±10%, 50 Hz

2. Heating power: 1000 W

3. Receiving cylinder: 100 ml. Scale division 1 ml

4.Distillation flask: 125 ml, as per GB/T6536 and ASTM D86

5. Thermometer: Total immersion. They are from -2 to 300 ℃ and from -2 to 400 ℃. The scale divisions of them are 1 ℃

6. Flask support board: SiC. Diameters of holes are φ32mm, 38mm, and 50mm

7. Temperature controller:

(1) Range: 0 ℃ to 60 ℃;

(2) Temperature accuracy: ±0.5℃

(3) Temperature display mode: Digitally displayed by LED

8. Ambient temperature: ≤30℃

9. Relative humidity: ≤85%

10. Refrigerated compressor: New-type refrigeration compressor

11. Maximum power consumption: 2500 W
