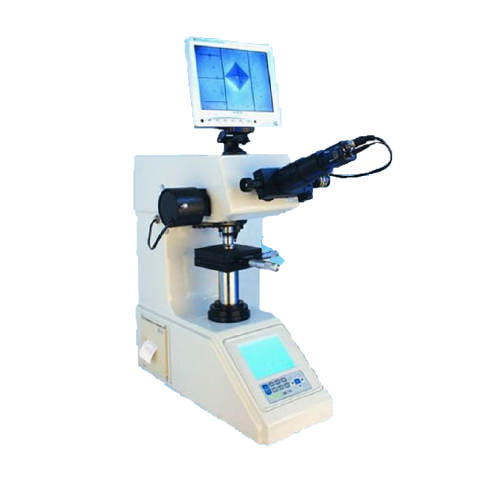

Samyon SP-5 Video Measuring Apparatus (125 um)

Specifications：

SP-5 is equipped with digital microscope (with rotary encoder)

and combined with 40X objective lens: Resolution: 0.01um

SP-5 is equipped with manual microscope (without rotary encoder)

and combined with 40X objective lens: Resolution: 0.125um

SP-5 is equipped with manual microscope (without rotary encoder)

and combined with 1X objective lens: Resolution: 5um

Measuring range: Combined with 40X objective lens: 125 um

Combined with 10X objective lens: 500 um

Combined with 1X objective lens: 5000 um

Optical system:

Total magnification: 400X (measurement)

100X (measurement)

1X (measurement)

CCD system:

Horizontal definition: 570 lines

Display mode: Black and white

Input voltage: DC12V±10%

LCD display system:

Screen size: 8”

Input voltage: DC12V±10%

Voltage stabilizer input voltage: 220V, 50Hz

Power consumption: ≤20W

Dimensions: φ47×170mm

Weight: 1 kg

Standard accessories:

CCD camera

LCD screen

Optical part
