Product Application

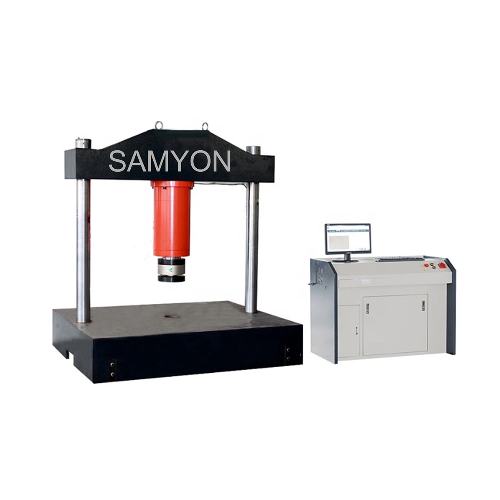

Mainly used for compression strength test of manhole cover press.
Main Specifications and Technical Parameter
Maximum Testing Force: 1000kN
Test force measurement range: 2%-100%FS
Test force speed adjustment range: 0.5-10kN/S
Piston stroke: 0-20mm
Range and accuracy of displacement measurement: 0-350mm; 0.01mm
Control precision: 1%
Upper indenter size: dia. 250*40mm
dia. 356*40mm
Compression test space: 300mm
Power supply voltage and power: 380±50HZ; 1.1KW
Weight (kg): About 4000kg
